Trade Series Core Barrels

Our Trade Series diamond tipped barrels offer excellent capability at very competitive prices.
They ideal for when you need to core a few holes only and don't want to buy a Premium barrel.
They offer a lot of bang for your buck. They will core concrete as well as reinforced concrete.
They are laser welded to eliminate segment loss due to overheating.

Our smaller barrels (up to 40mm) generally have a male 1/2" BSP back end fitting.
All sizes above are 1 1/4" UNC female BEF.

See also our core cutter page for our all our dry cut core cutters as another budget alternative. They can be used on an ordinary drill (with chuck or SDS Plus), and are another well priced alternative.

We also stock and sell:
 - Extensions - 1/2" and 1 1/4" UNC types (150mm and 300mm)
 - Adaptors - from 1/2" to 1 1/4" UNC, or Hilti to 1 1/4" UNC
See our "Core Drill Accessories and Spare Parts" page for further info here.

Note - For operator safety, most manufacturers recommend drilling over 67mm be done with the drill mounted in a stand.
If in doubt, contact us,  the barrel or drill manufacturers.

For a more detailed look at Core Drilling from selecting your core drill to actually drilling  plus all the UDT core drilling supplies; download the guide below.

Download the UDT Core Drilling Guide

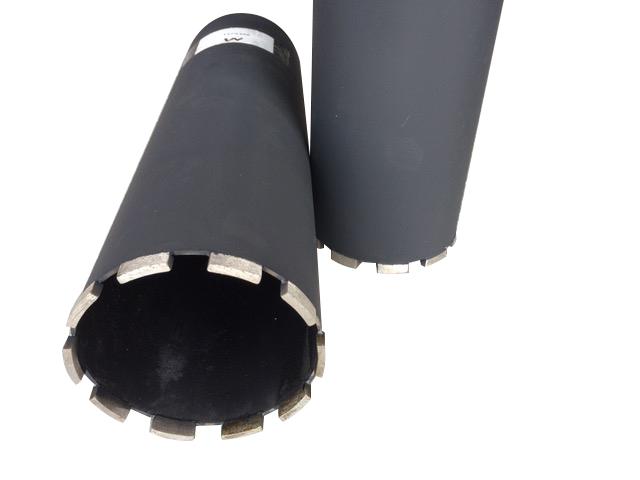

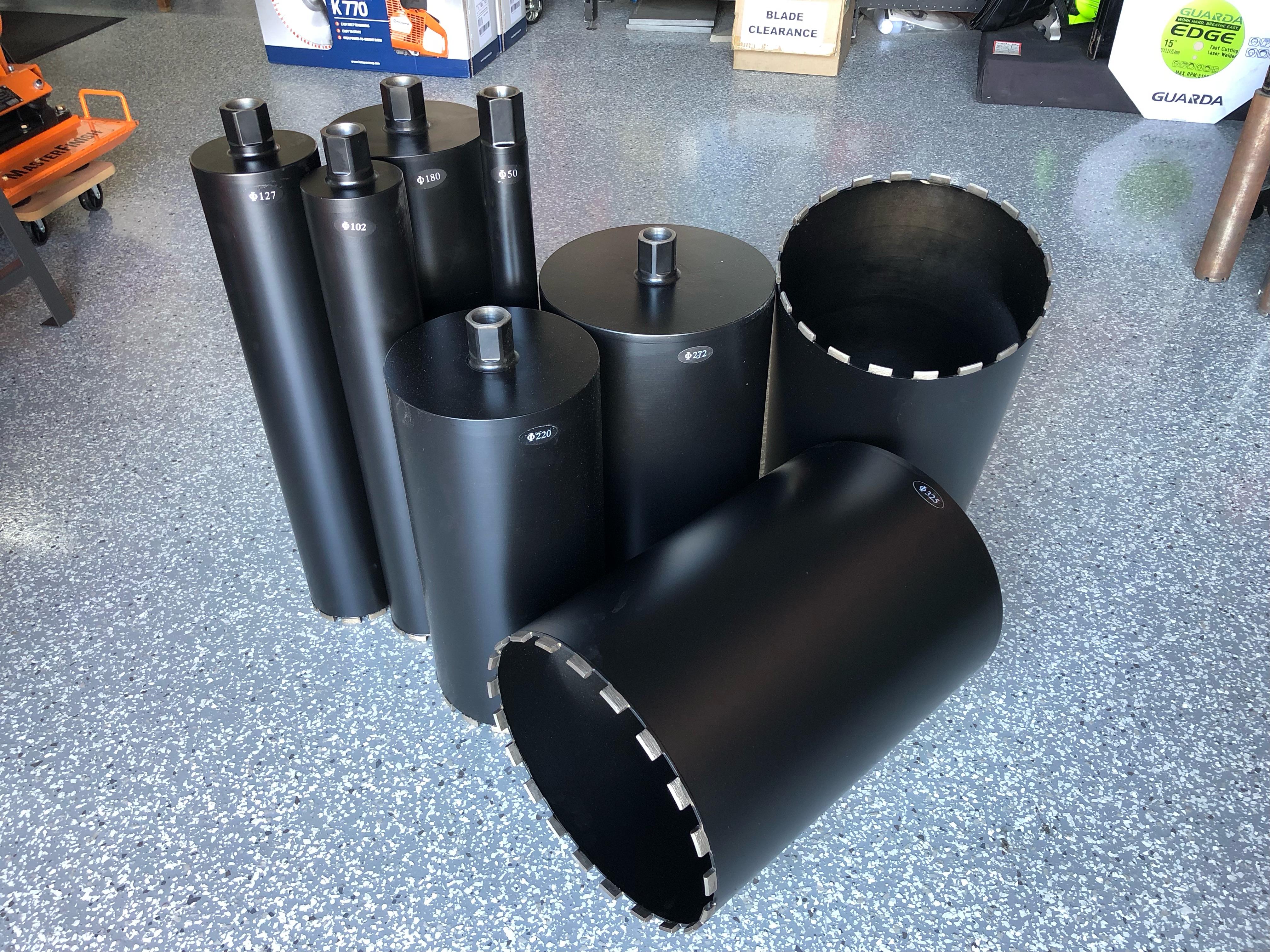

limestone-barrels.jpg img_3867.jpg

Code Description
Fitting
Size
Colour

Price
DBS20 Concrete 1/2"
20mm
White
$65
DBS25 Concrete
1/2"
25mm
White
$70
DBS26 Concrete
1/2"
26mm
White
$50
DBS30 Concrete
1/2"
30mm
White
$50
DBS32 Concrete 1/2"
32mm
White
$50
DBS35 Concrete
1/2"
35mm
White
$50
DBS40 Concrete
1/2"
40mm
White
$85
DBS51 Concrete
1.1/4" UNC
51mm
Black
$105
DBS66 Concrete
1.1/4" UNC
66mm
Black
$110
DBS76 Concrete
1.1/4" UNC
76mm
Black
$135
DB90 Concrete
1.1/4" UNC
90mm
Black
$175
DBS102 Concrete
1.1/4" UNC
100mm
Black
$195
DBS115 Concrete
1.1/4" UNC
115mm
Black $210
DBS127 Concrete
1.1/4" UNC
127mm
Black $220
DBS132 Concrete
1.1/4" UNC
132mm
Silver $215
DBS152 Concrete
1.1/4" UNC
152mm
Black $235
DING220 Concrete
1.1/4" UNC
220mm
Black $385
DING250 Concrete
1.1/4" UNC
250mm
Black $385
DING272 Concrete
1.1/4" UNC
272mm
Black $420
DING300 Concrete
1.1/4" UNC
300mm
Black $440
DING325 Concrete
1.1/4" UNC
325mm
Black $470

Prices correct as of 1/1/24 but subject to change.
All prices are each and include GST.

Silica dust - when workers drill, cut, crush, saw, grind or polish products that contain silica, particles are created, which are one-hundredth of the size of a grain of sand. These can get  stuck deep in the lungs.
Ensure precautions to limit exposure to dust are in place.
See the WA government's info on silica dust here.
