Petrol Floor Saws

Golz is a German company with over 70 years of experience manufacturing concrete machinery. United Diamond Tools are proud to carry the following items for sale in Perth Western Australia.

FS125 Golz Floor Saw

FS125 Golz Floor Saw with Honda 6.5HP engine




  • 350mm max. blade size
  • 120mm max. cutting depth
  • 2730rpm shaft speed
  • 25.4mm shaft size
  • 25L water tank, easy to fill
  • Adjustable anti vibration handles for operators comfort
  • Cutting depth adjustment by handwheel with depth indicator
  • Front cutting guide
  • Parking brake with big rear wheels for good chassis clearance
  • 6.0hp Honda GX200
  • Durable Poly-V belt for an optimum of power transmission
  • Lifting frame
  • Dimensions 650x450x1000mm (LxWxH)
  • 77kg total weight
  • Blade not included
  • 7.0hp petrol Subaru engine option available

FS175 Golz Floor Saw

FS175 Golz Floor Saw with Subaru 14HP Engine



  • 450mm max. blade size

  • 165mm max. cutting depth

  • 2300rpm shaft speed

  • 25.4mm shaft size

  • 25L water tank, easy to fill

  • Adjustable anti vibration handles for operators comfort

  • Cutting depth adjustment by handwheel with depth indicator

  • Front cutting guide

  • Parking brake with big rear wheels for good chassis clearance

  • 14hp Subaru engine

  • Durable Poly-V belt for an optimum of power transmission

  • Lifting frame

  • Dimensions 1220x491x1160mm (LxWxH)

  • 110kg total weight

  • Blade not included

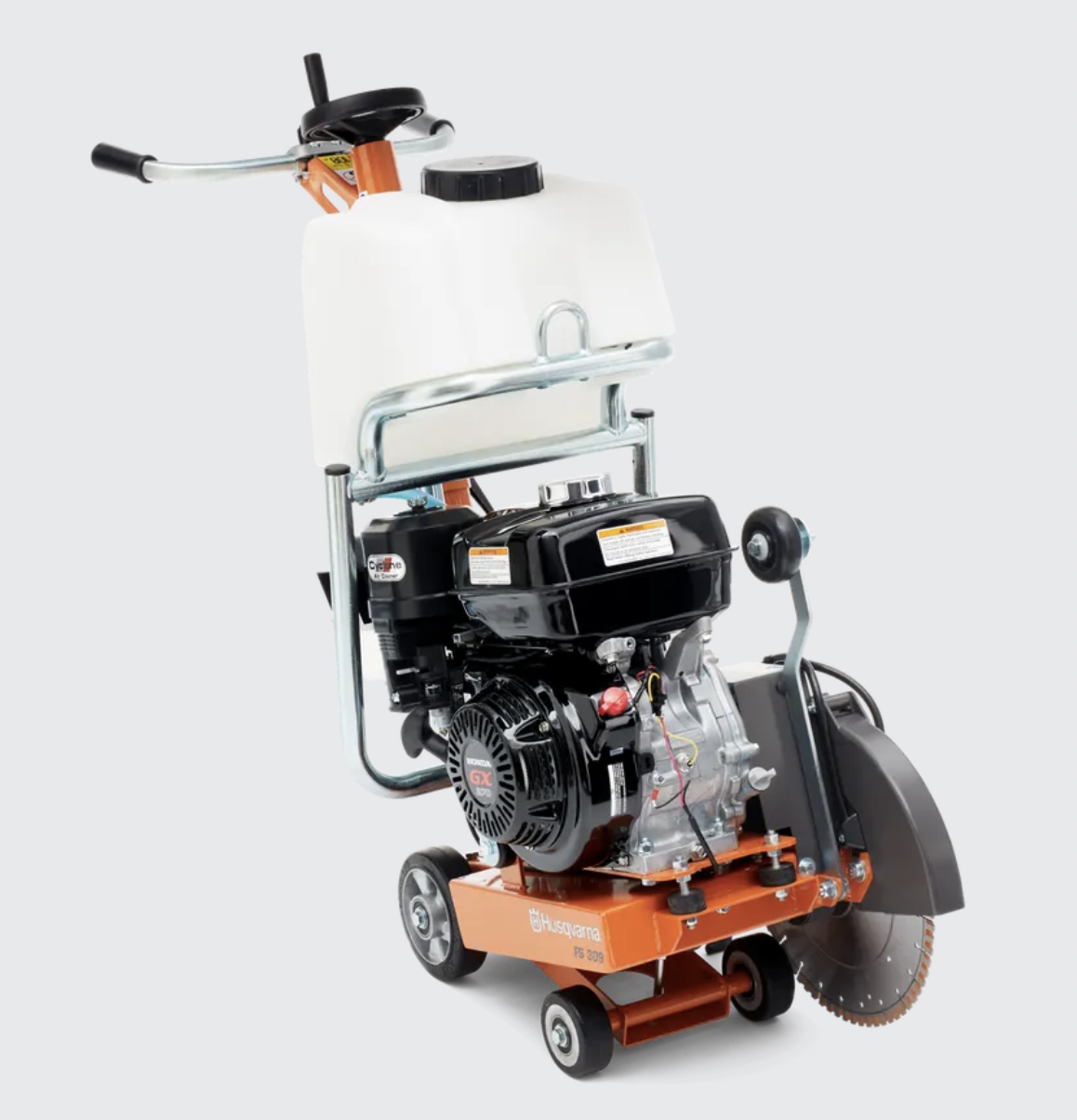

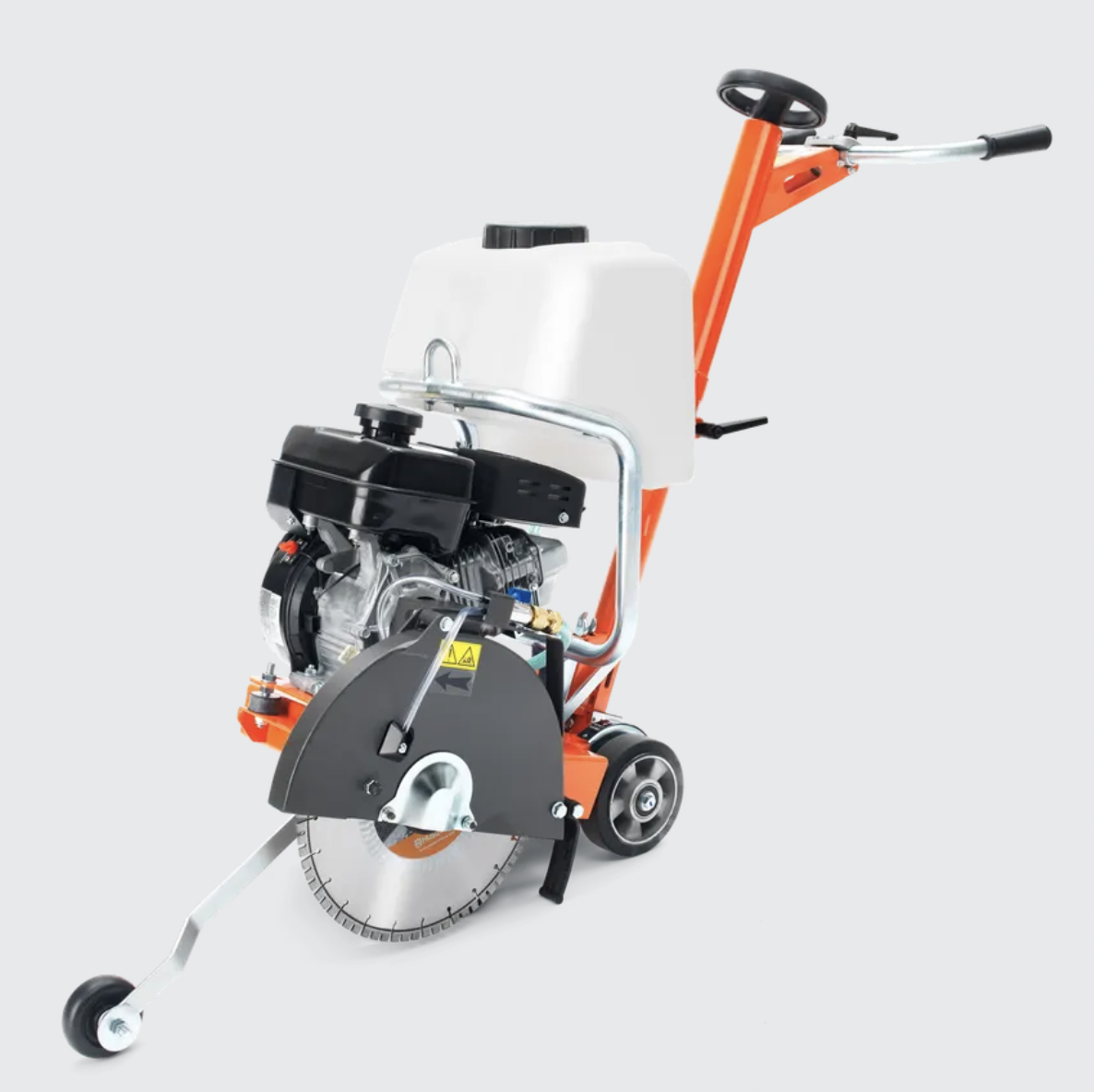

FS309 Husqvarna Floor Saw

FS309 Husqvarna Floor Saw With 9HP Robin engine

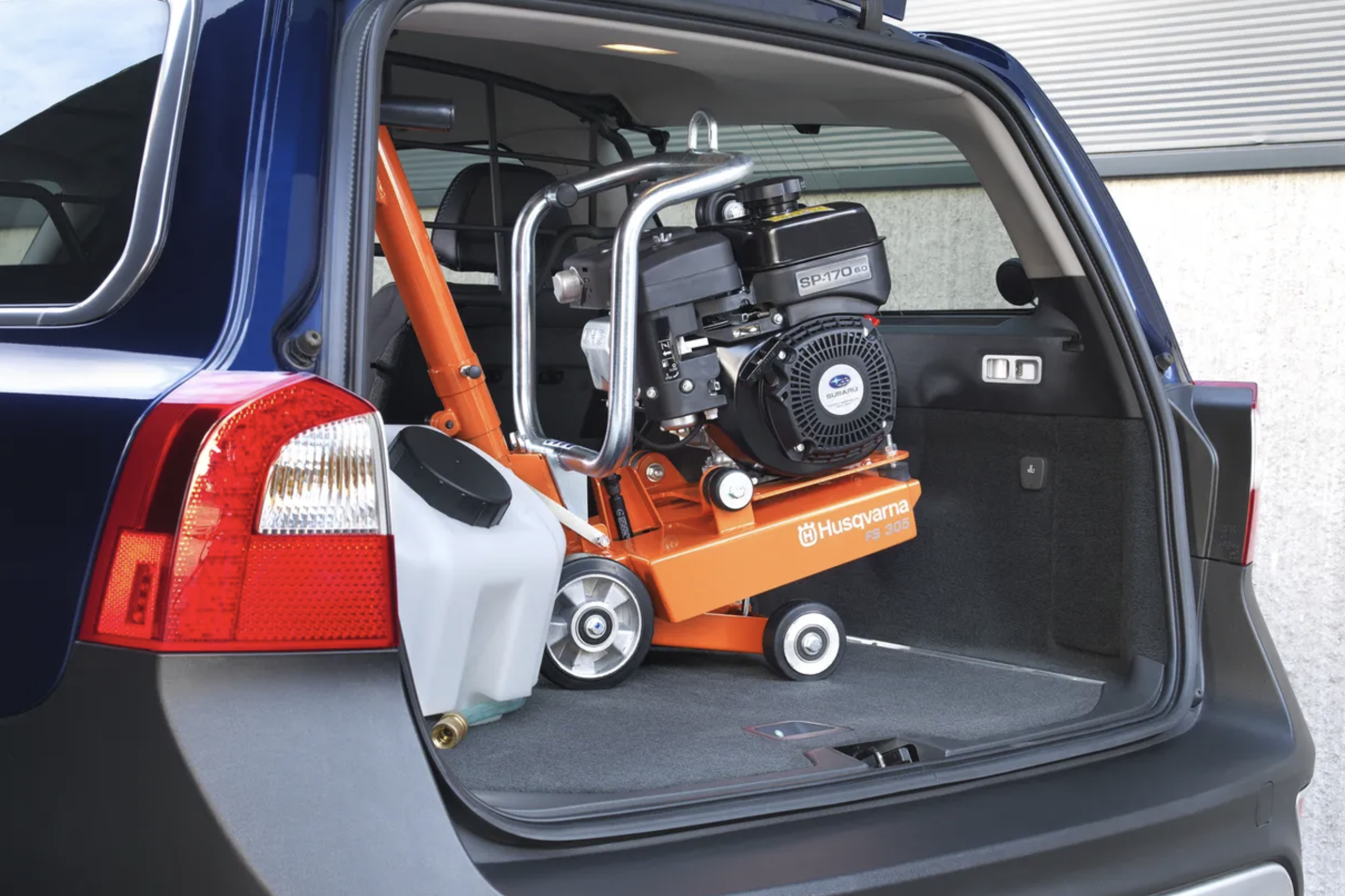

Very lightweight and compact petrol push floor saw for asphalt and concrete cutting. Ideal for job sites that are difficult to access and for small repair jobs, up to 118 mm cutting depth. The FS 309 is very easy to handle and can be transported in a small vehicle.

  • Cutting depth, max 117.5 mm

  • Output power (As rated by Subaru/Robin) 6.34 kW

  • Blade diameter, max 350 mm/14"

  • Weight - 53kgs

$2695 incl GST (no blade).

K-Pact Offset Blade Floor Saw

$2550 incl GST (no blade)



The K-pact is a light-weight, manoeuvrable machine that is durable and rugged. It is the ideal machine for sawing floors, roads, footpaths, decorative sawing, outlining patches and many other small concrete cutting jobs.

Features

• A rugged, compact and portable saw. 6mm lasercut and folded structural baseplate provides maximum rigidity.
• Depth of cut is controlled by a gas filled strut, operated by a hand lever. Enables easy blade lowering & cutting depth control.
• Handlebar mounted controls provide convenient operation of cutting depth lever, water supply and stop switch.
• Large Rear Wheels for manoeuvrability on any surface
• Folding Handlebar Assembly allows portability and height adjustment
• Folding Guide Bar provides cutting accuracy

Specifications

• Blade shaft and Bearings 32mm
• Blade size 360mm (Bore Size 25.4mm with drive pin)
up to 10mm thick abrasive blades.
• Engine standard 9 HP Honda
• Max cutting depth 121mm

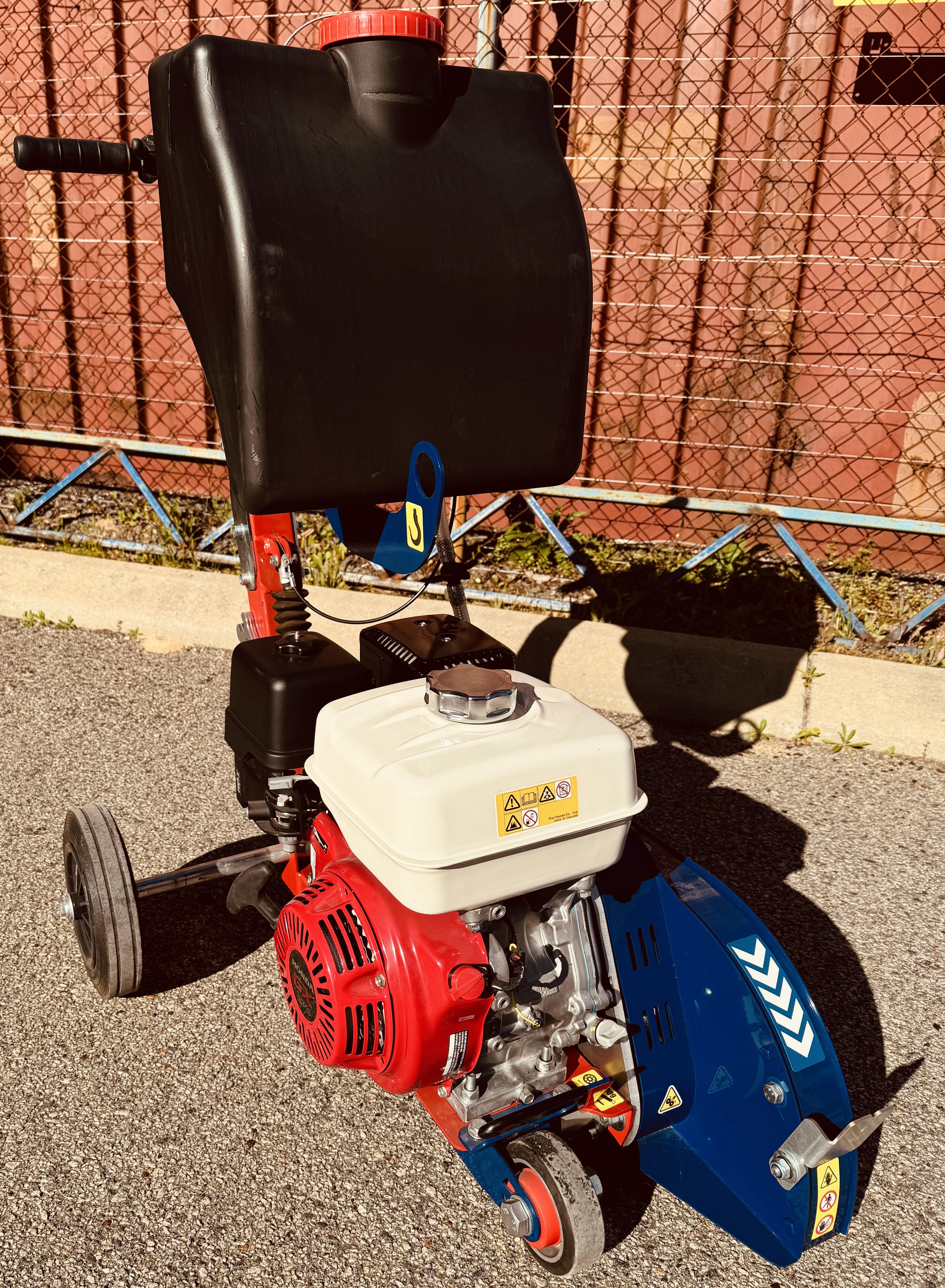

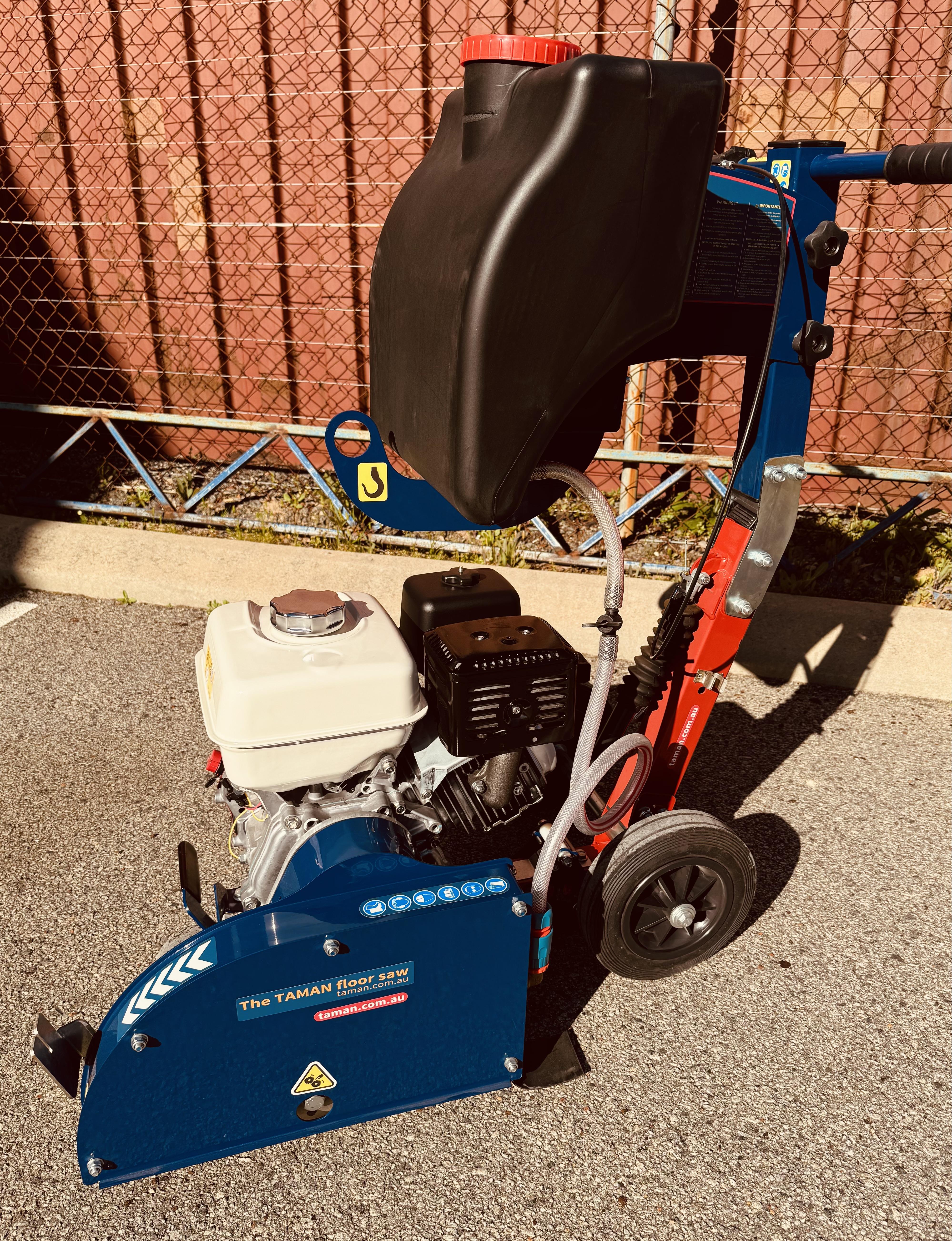

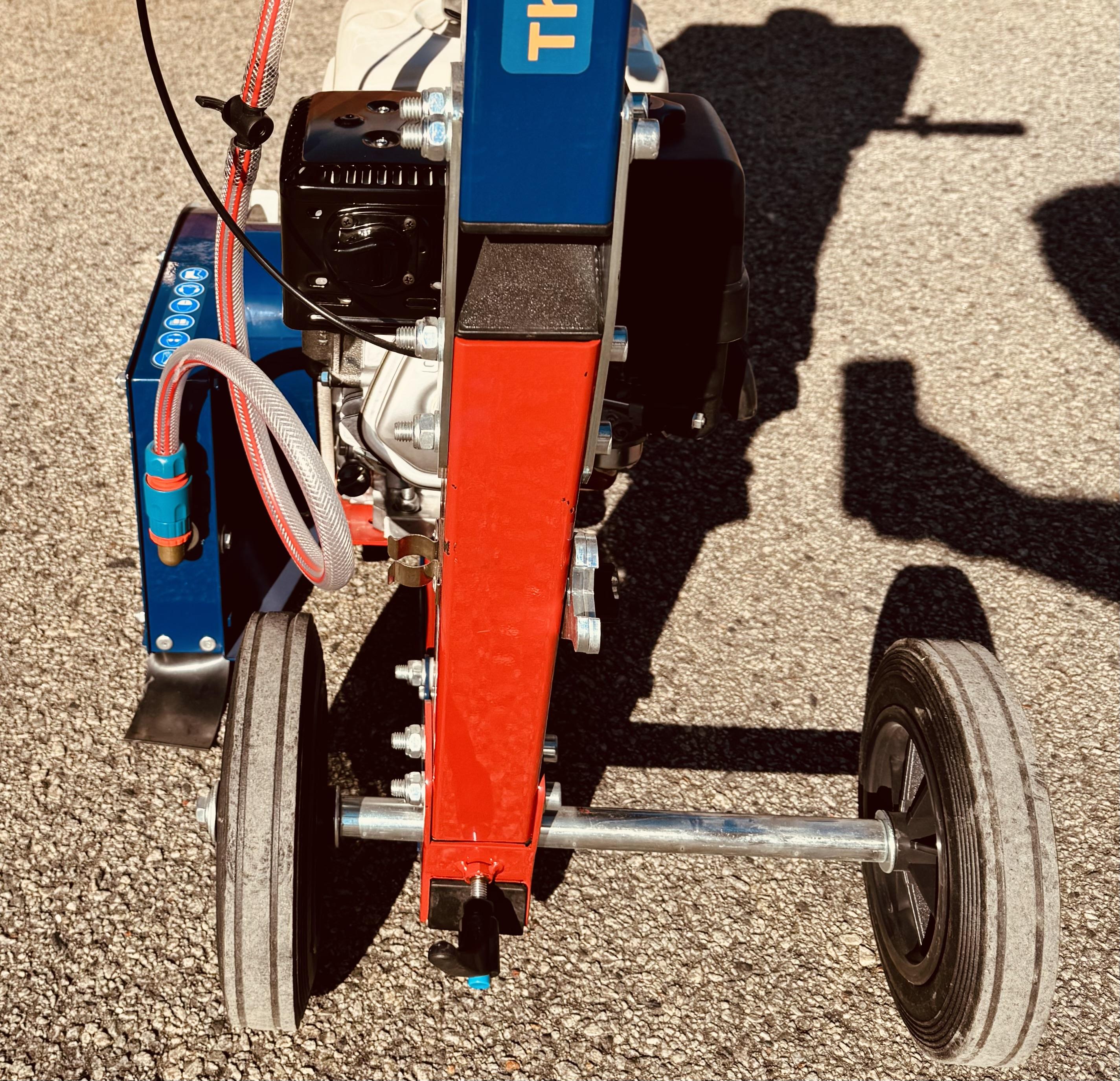

Compac Saw with extended shaft (for offset cutting, so ideal when cutting edge on newly laid pavers)
$2995 incl GST
(no blade)

Husqvarna FS309 drive belt - in stock at $60 incl GST

Prices correct as of 1/11/20 but subject to change.

For the operation and spare parts manuals for these machines  Click Here

Silica dust is very dangerous, especially if dry cutting. For more info on silica, see Safe Work Australia's info here.

Disclaimer: the information on this website is provided in good faith and believed to be reliable and accurate at this time. However, the information is provided on the basis that the reader will be solely responsible for assessing the information and its veracity and usefulness. UDT shall in no way be liable, in negligence or howsoever, for any loss sustained or incurred by anyone relying on the information, even if such information is or turns out to be wrong, incomplete, out-of-date or misleading.
