Diamond Router Heads

Vacuum Brazed Diamond Router Heads are used on an angle grinder to produce a perfect profile on a wide variety of materials including masonry, granite, concrete, marble and other soft natural stones.
(May lead to chipping on ceramic and porcelain, so not recommended.)

Diamond outperforms standard tungsten carbide heads in durability and speed of cutting.

Vacuum Brazed Diamond tools can run at high speed and dry but try to use a grinder with variable speed (up to 10,000 RPM)
For best results– move the grinder back and forwards in a sawing action until the full depth & shape is achieved .
For polished Granite and Marble surfaces further polishing is required, so use various grit polishing pads.

Use WET or DRY and at any speed, as the diamonds are brazed on using our EXTRA strong bonding vacuum brazed technology. This bonding process allows 40% more exposure of the diamonds to do cutting than electroplated method. They also hold their shape during its life.

There are water holes in the heads if your grinder has water adaption as original manufacturer supply.
Life increases by 50% plus when water is used. But they can be used dry.
Only use water with power tools designed to deliver water to the job.
Always take care if using water near power tools.

The larger hard rubber rimed bearing holds the top surface for safe and easy control of the profile head during grinding. The small bearing runs on the front face. Both ensures the profile shape is consistent as you move the grinder back and forth until the full depth and shape is completed, ready for the polishing process.

All are M14 thread (as used on most angle grinders in Australia)

Remember to always use personal protection equipment (goggles, hearing protection etc)
Silica warning - see safety instructions here
Do not allow to over heat - air cool regularly.
If cutting wet, only do so on equipment designed for wet cutting. Do not allow water to get into your electrical equipment.

Stanley Truacut have been supplying quality products in Australia for over 60 years.
Decades of field testing and continual improvement has earned them a reputation for reliability and  quality second to none.

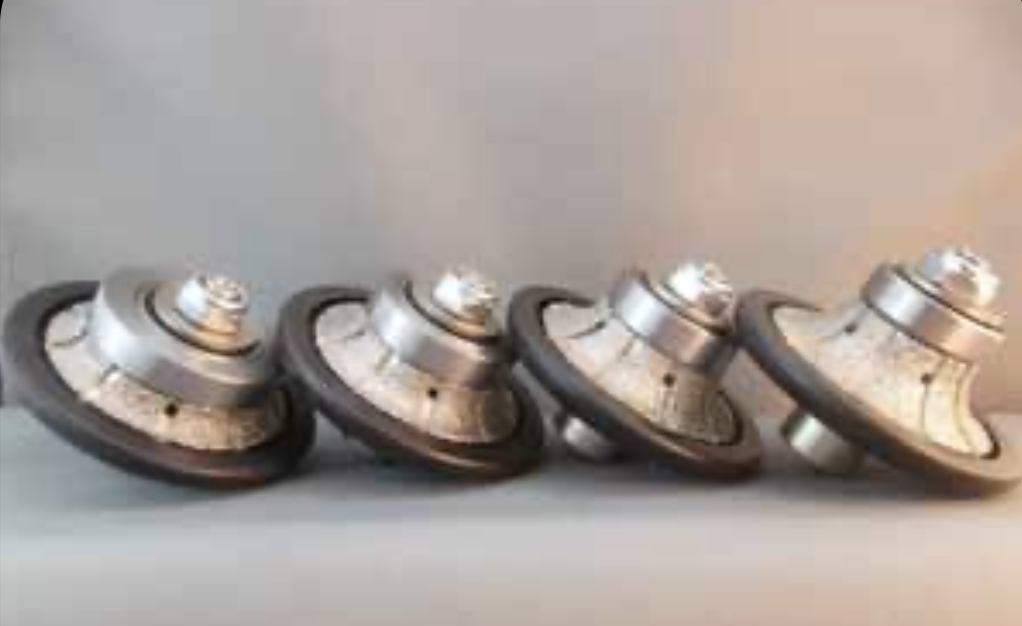

Rounding over heads - with top and bottom bearing guides.
#40/50 grit

  • DVB508G 6.4mm radius $305
  • DBV512G 9.5mm radius $305
  • DVB516G 12.7mm radius $315
  • DVB520G 15.8mm radius $325
  • DVB524G 19mm radius $340
  • DVB532G 25mm radius $380
  • DVB540G 30mm radius $425
    (all prices each, incl GST)
    Radius is same as depth.

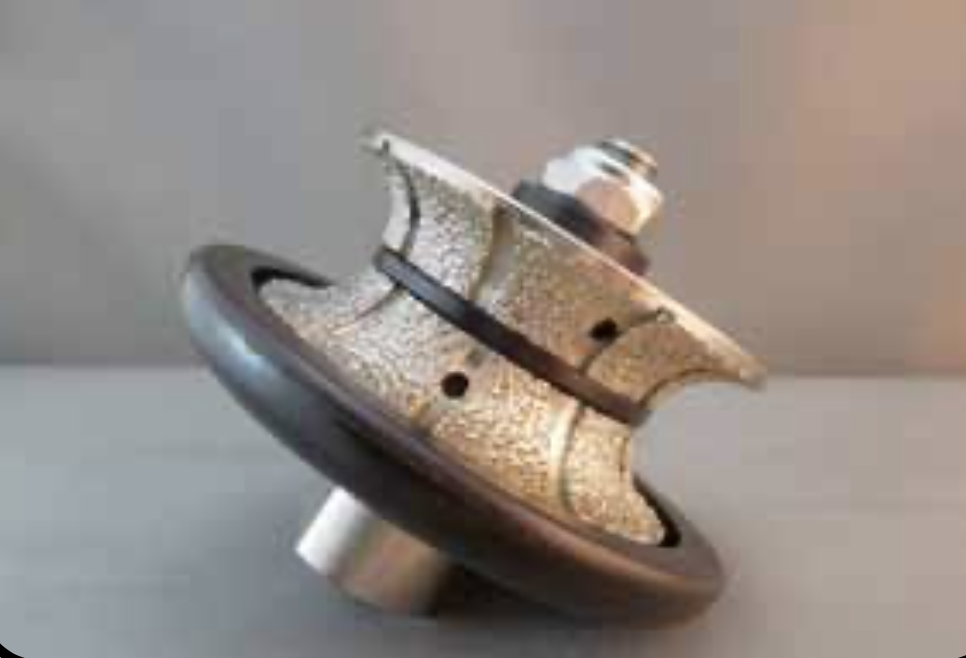

Bull Nose Heads #40/50 grit:

  • DBBN20G 9.5mm radius for 20mm sheets
    $375 (2 only at this price)
  • DVBBN30G 15mm radius for 30mm sheets
    $395 (2 only at this price)
    (all prices each, incl GST)

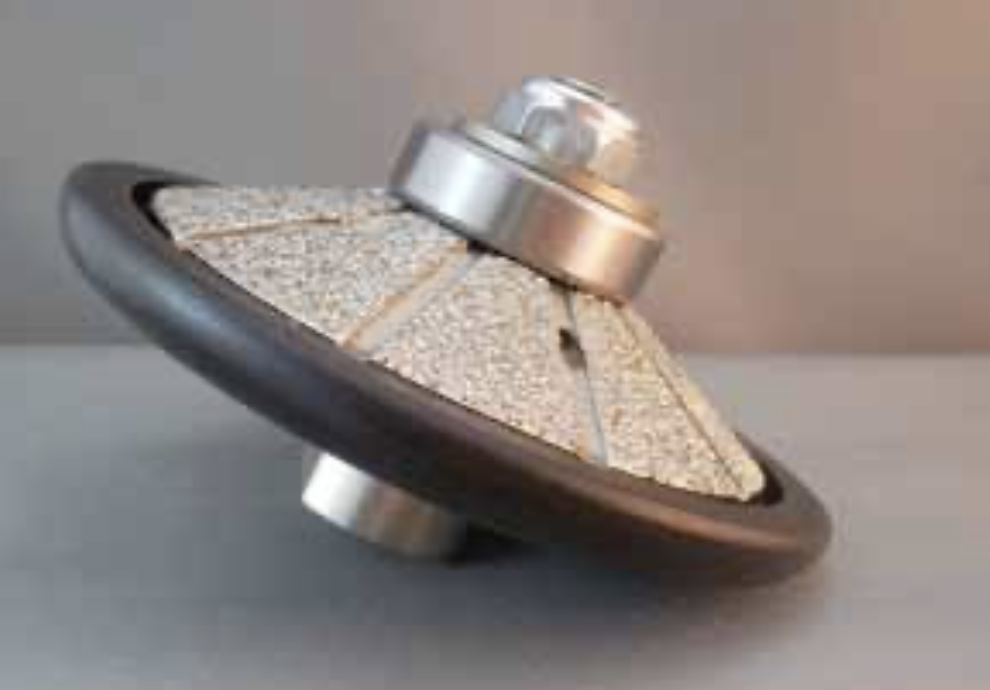

Chamfering Heads #40/50 grit:

  • DVB8170G 20 degree x 25mm flat chamfer
    $160 (two only at this price)
    (all prices each, incl GST)

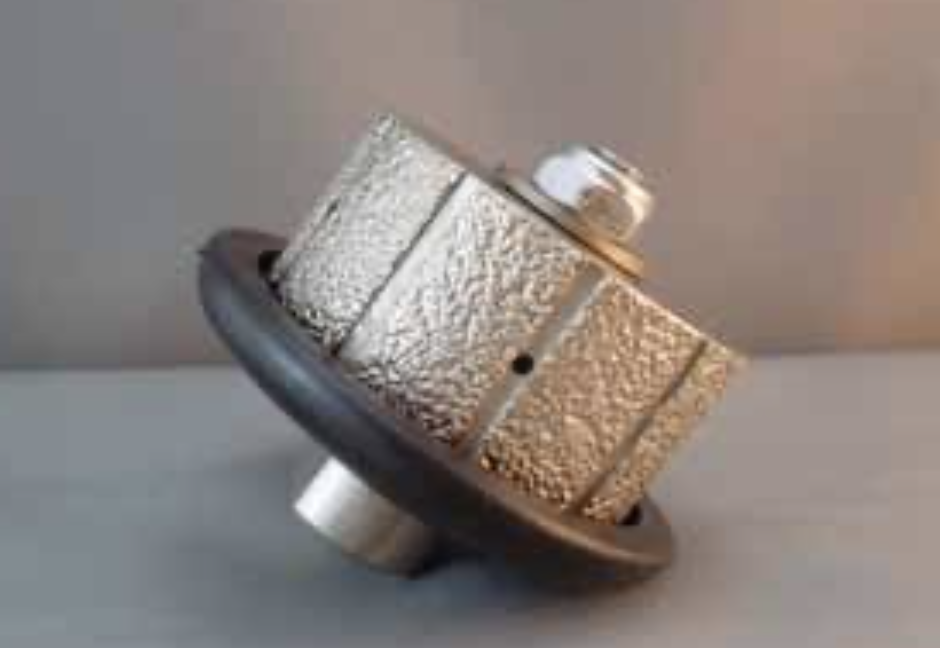

Grinding Drum Head #40/50 Grit:

  • DVB8282G 65mm diameter x 32mm depth
    $260 (two only at this price)
    (all prices each, incl GST)

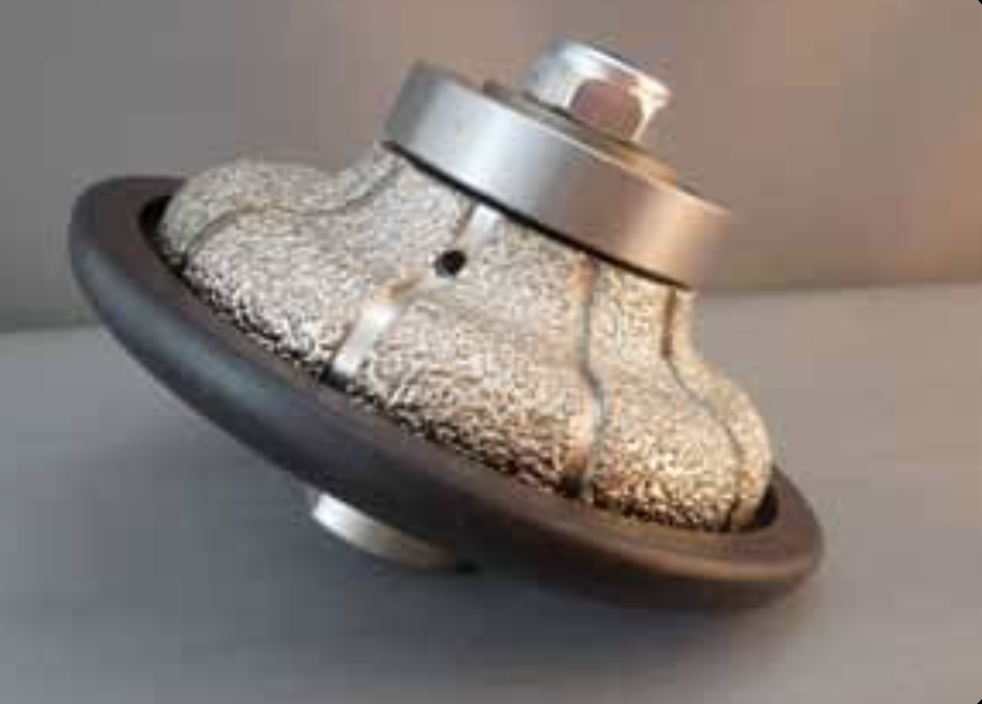

Ogee Head #40/50 Grit:

  • DVB7512G 10mm radius, 20mm depth of cut
    $260 (two only at this price)
    (all prices each, incl GST)

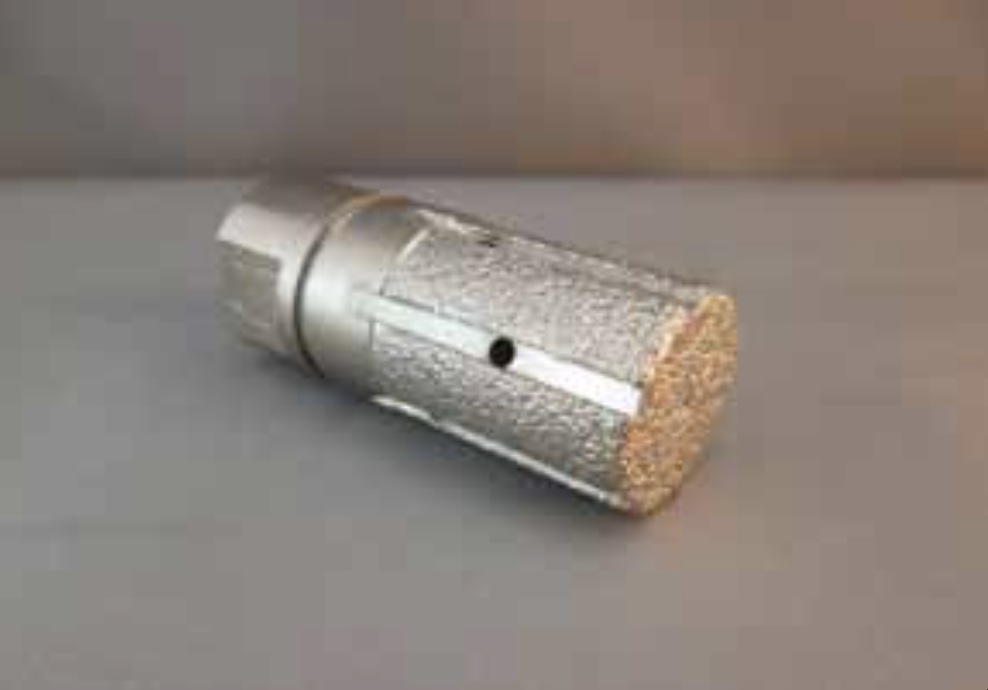

Finger Grinder Head #60/70 Grit:

  • DVB0032G 25mm diameter x 30mm depth of cut $125  each, incl GST

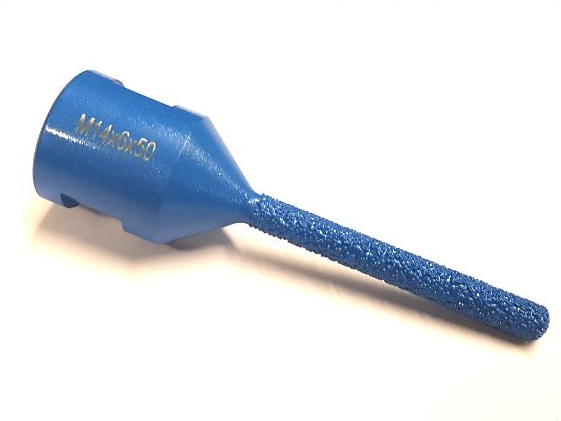

Vacuum Brazed mortar rakes with M14 Thread:

For chasing mortar and joints in, or routing weep holes in stone etc.
M14 thread - suits most angle grinders.
Solid shaft in 6mm or 8mm diameter

Sizes:

  • 6mm x 50mm      $55 Incl GST ea
  • 6mm x 130mm    $90 Incl GST ea
  • 8mm x 50mm      $55 Incl GST ea
  • 8mm x 130mm    $90 Incl GST ea
  • Truacut 8mm x 40mm $50 Incl GST ea

See tuck pointing blades here

Note - When workers cut, saw  crush, drill, polish or grind products that contain silica, particles are created, which are one-hundredth of the size of a grain of sand. These can get  stuck deep in the lungs. Ensure precautions to limit exposure to dust are in place.
Use a half face respirator or a PAPR (Powered air purifying respirator).
See the WA government's info on silica dust here.

Prices correct as of 1/5/24 but subject to change.

Please see our Contact Us page for Australia wide delivery information.
