Concrete grinders - Hand held

I stock quality DTA and Eibenstock hand held concrete grinders for sale in Perth, Western Australia.

For tips on grinding, see information on cup wheels here, or grinding shoes here.
Some of these grinders have very big motors. Try to put your vacuum on a seperate circuit, or at least a seperate power point.
This will allow the bigger saws to draw their rated power, and perform as specified.

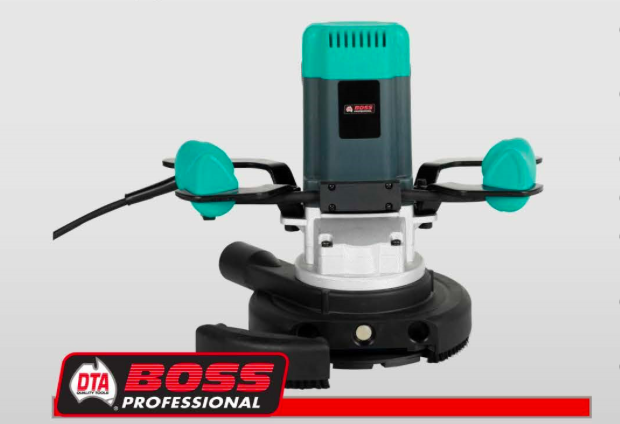

DTA Boss 180mm Grinder.

Boss Professional range by DTA
dta-bcgr-180.png Model BCGR180
Suitable for diamond and resin discs
1900 watt, variable speed (0 - 3000RPM)
Removeable front cover to grind close to wall
6.6kg
Includes soft start, overload protection, dust extractor and universal hose adaptor
175mm dual row diamond grinding wheel included
$650 incl GST

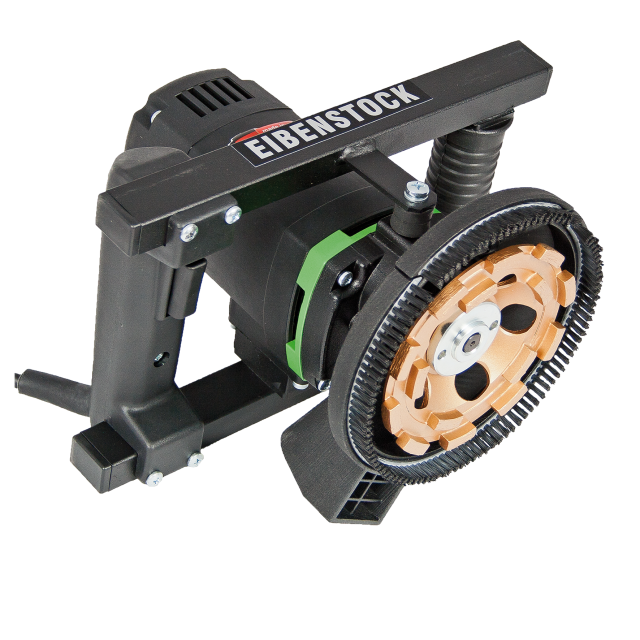

Eibenstock Concrete Grinder 125mm EBS1802 - $1350 incl GST

For professional floor grinder use
  • Grinding and smoothing of surfaces
  • Removing of screed seams, residual mud, plaster and coatings
  • Preparing of surfaces, e.g. for tile renovation
  • Concrete, screed, tile adhesive, plaster, paint, coatings, carpet adhesive – with corresponding grinding wheels (accessories)
  • See the Eibenstock EBS1802 in action at the bottom of this page:

Features:

  • Electronic - soft start, constant speed, speed reduction in case of overload, temperature and over current cut-off

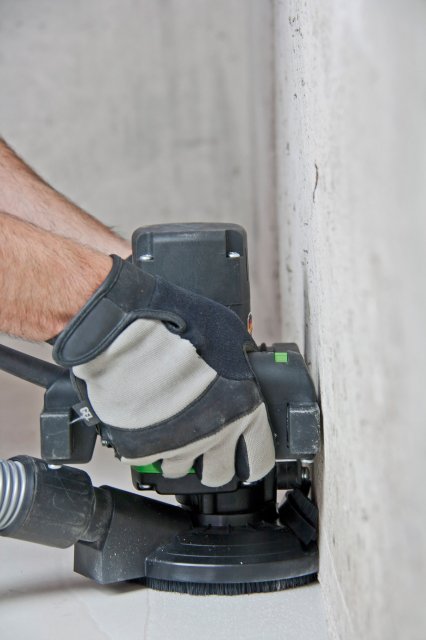

  • Foldable front edge of dust guard - for grinding directly to the edge of the work area
  • Brush rim - high suction power for dust-free working by connecting an industrial vacuum cleaner (accessory) to the 35 mm nozzle
  • Parallel handle position - ergonomic handles allow exact and balanced guiding for a better surface finish
  • 1800 watts
  • Voltage: 230V
  • Rated speed: 10,000RPM
  • Disc Diameter : 125mm
  • Spindle: 22.23mm/7/8"
  • Machine Weight 5.9 kg
  • Comes with case, concrete diamond wheel, tools & manual.
  • 12 month commercial Australia wide warranty.

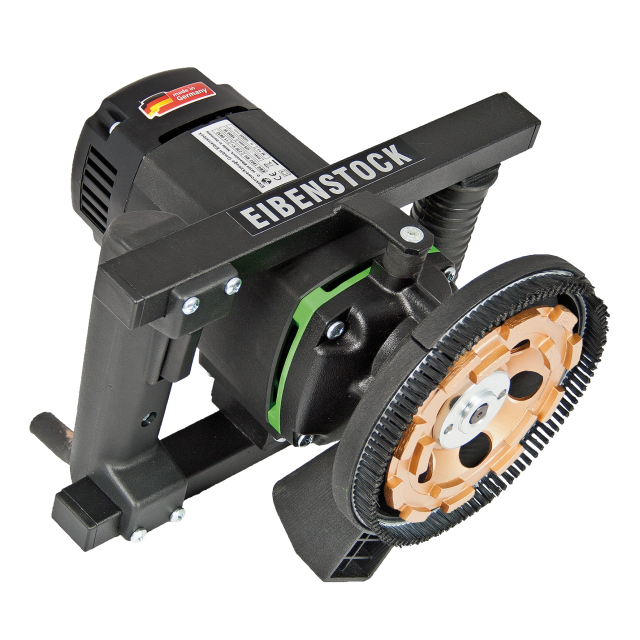

Eibenstock Concrete Grinder 180mm EBS180H - $1999 incl GST

For professional floor grinder use




Use:

  • Grinding and smoothing of surfaces
  • Removing of screed seams, residual mud, plaster and coatings
  • Preparing of surfaces, e.g. for tile renovation
  • Concrete, screed, tile adhesive, plaster, paint, coatings, carpet adhesive – with corresponding grinding wheels (accessories)
  • See the Eibenstock EBS1802 in action at the bottom of this page:

Features:

  • Powerful motor – high capacity
  • Electronic – soft start, over current cut-off, overload indication

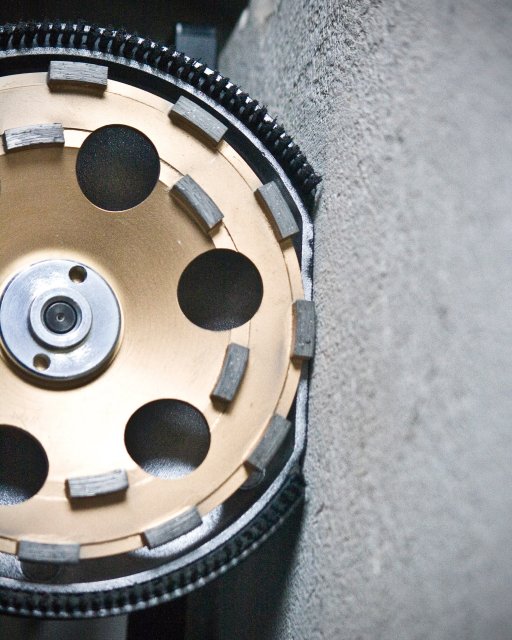

  • Foldable front edge of dust guard – for grinding directly to the edge of the work area (no laborious reworking, saves time and costs)
  • Brush rim – high suction power for dust-free working by connecting an industrial vacuum cleaner (accessory) to the 35 mm nozzle
  • Parallel handle position – ergonomic handling allows exact and balanced guiding for a better surface finish
  • Floor guiding device – available as accessory
  • 2500 watts
  • Voltage: 230V
  • Rated speed: 8500RPM
  • Disc Diameter : 180mm
  • Spindle: 22.23mm/7/8"
  • Machine Weight 8.4 kg
  • Comes with case, concrete diamond wheel, tools & manual.
  • 12 month commercial Australia wide warranty.

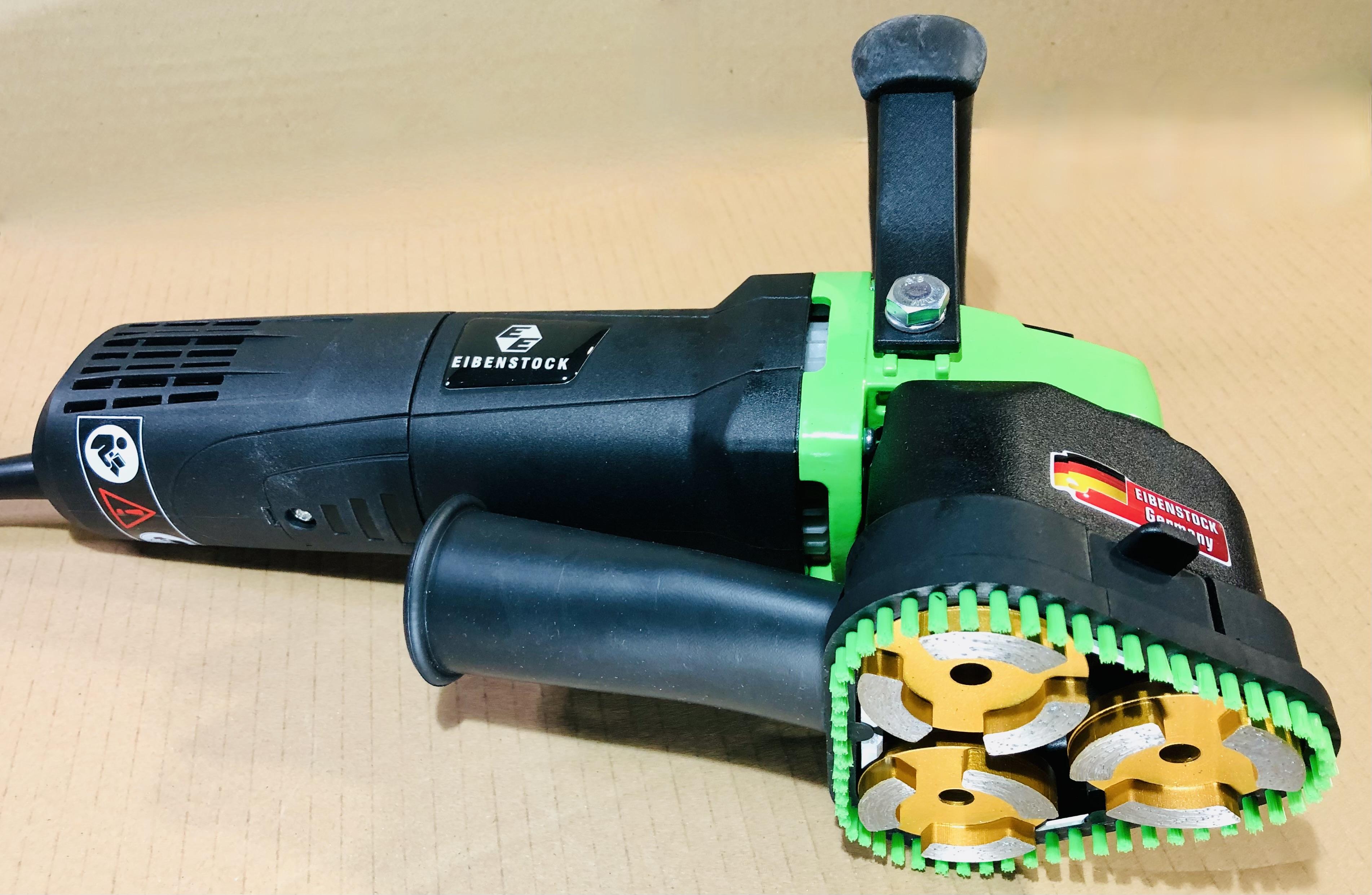

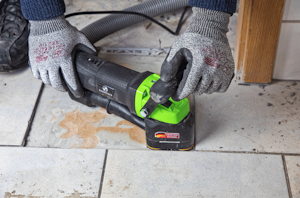

Eibenstock Concrete Grinder  EES1400.3

$1395 incl GST


img_5219.jpeg fb33p.jpg.png

Use:

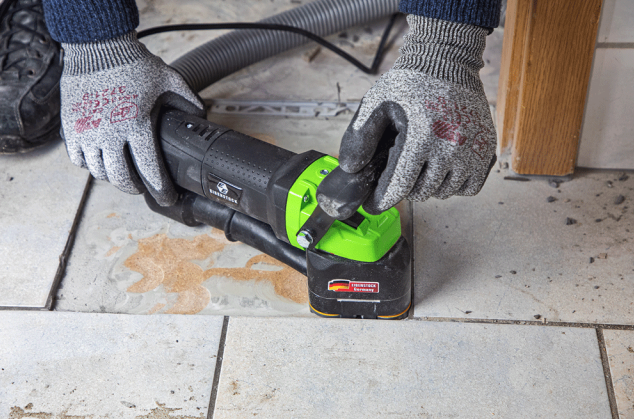

  • For grinding small areas , e.g. stairs, window sills, niches etc
  • Ideal for stair and tile renovations
  • Grinding right up to the edge (with removed brush rim)

Features:

  • Electronic - soft start, speed adjustment and constant speed
  • With dust extraction point
  • 1400 watts
  • Variable speed - 4,500 - 13,000 rpm
  • 3.3kg
  • Made in Germany

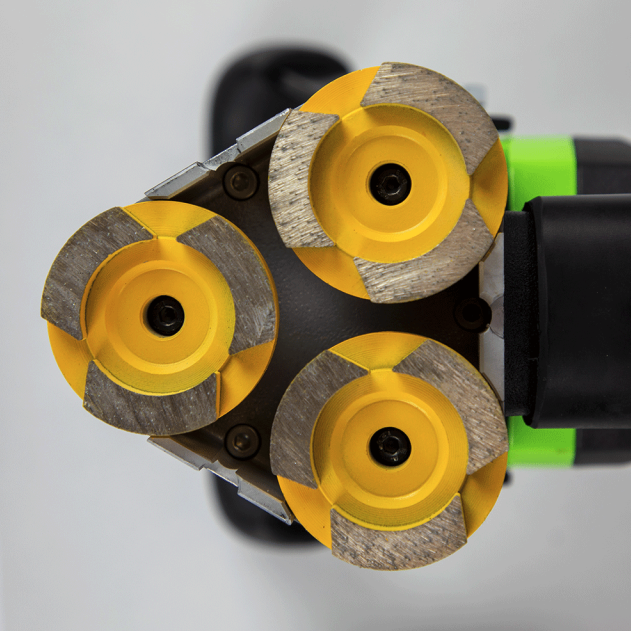

  • In case with tools and 3 x concrete cup wheels
  • 12 month commercial Australia wide warranty.

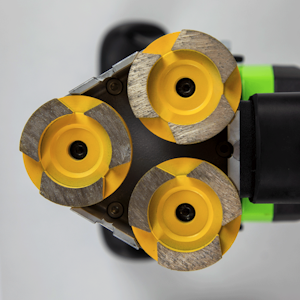

Replacement set of three heads with screws:
Concrete $350 incl GST
Tungsten Carbide $350 Incl GST
Screed Grinding $370 Incl GST

Prices correct as of 1/11/24 but subject to change.

See the Eibenstock EBS1802 in action here:

See a range of Eibenstock grinders in action here:

For the operation and spare parts manuals for these machines  Click Here

Silica dust - when workers cut, crush, drill, polish, saw or grind products that contain silica, particles are created, which are one-hundredth of the size of a grain of sand. These can get  stuck deep in the lungs.
Ensure precautions to limit exposure to dust are in place.
See the WA government's info on silica dust here.

Grinding Concrete:

It is impossible to make a recommendation on YOUR grinding job. Every job is different.

Grinding hard concrete does not produce much dust, and it is usually soft and non abrasive.
The diamonds cut and break as normal, but the metal bond surrounding them is not worn away easily without the dust, so the diamonds are not exposed as much as with soft concrete. The diamond segment glazes over and stops working and rubs on the floor instead of cutting it. You can use larger diamonds (around #25 grit) to increase dust production. Also, reduce the surface area with fewer segments to increase the weight per square centimetre.

Grinding soft concrete usually produces sufficient gritty, abrasive dust that will wear away the bond and expose the diamonds adequately. In fact, too much dust can cause the grinding wheel to wear too fast, so vacuum up excess dust. Reduce the weight on the wheel or increase the surface area with more segments to reduce the weight per square centimetre.

Inspect your cup wheels regularly to make sure diamonds are exposed adequately  and that they are not overheating . Even the best shoes will perform badly if used in the wrong application.

Tips:
Dampening the concrete before grinding, or even spraying a little water may assist with your job ( be careful mixing water with electricity - use an RCD). It will make a grinding paste.
Similarly, clean builders sand on the surface, or reducing dust extraction, will help the grinding process.
A grinding compound such as Worx+ Totally Cut Sikk can assist grinding.
Use only heavy duty (2.5 mm2 minimum but preferably 4 mm2) extension cords and keep them as short as possible (under 15m).

Remember - every job is different. The enormous combinations of different types of surfaces, different shoe styles, with many different bonds and grits, plus different machines and varied operator experience means it is impossible to guess what will give the perfect result the first time. Some experimentation is often necessary to achieve the required results.

Disclaimer: the information on this website is provided in good faith and believed to be reliable and accurate at this time. However, the information is provided on the basis that the reader will be solely responsible for assessing the information and its veracity and usefulness. UDT shall in no way be liable, in negligence or howsoever, for any loss sustained or incurred by anyone relying on the information, even if such information is or turns out to be wrong, incomplete, out-of-date or misleading.
