Core Drill Block

Used to improve the accuracy and safety when core drilling.

Core Drill Block are designed to be used with hand held core drilling machines, to give an accurate hole, in the walls, floors, pipes and anything made from concrete.
Can also be used in conjunction with stands for a precise guide.

B "Standard" series are for 90 degree coring only.
AB "Angle Block" series can be used for coring at 90 degrees, and on an angle.
Smaller blocks have one jacking bolt. 230mm and above has two.

The block is manufactured from Polystone 7000 SH UHMWPE, and will last 80-100 holes (user and substrate-dependent).

The features of a Core Drill Guide Block:

• Is a much safer process to hand held core drilling
• Eliminates the need for a core drill stand
• Eliminates the core barrel from "wandering"
• Easier to start drilling with pinpoint accuracy
• Minimal set-up time
• Re-use the Block over & over
• Anchor bolt acts as a tool for removing cores
• The Core Drill Block keeps the drill at the correct angle for accuracy

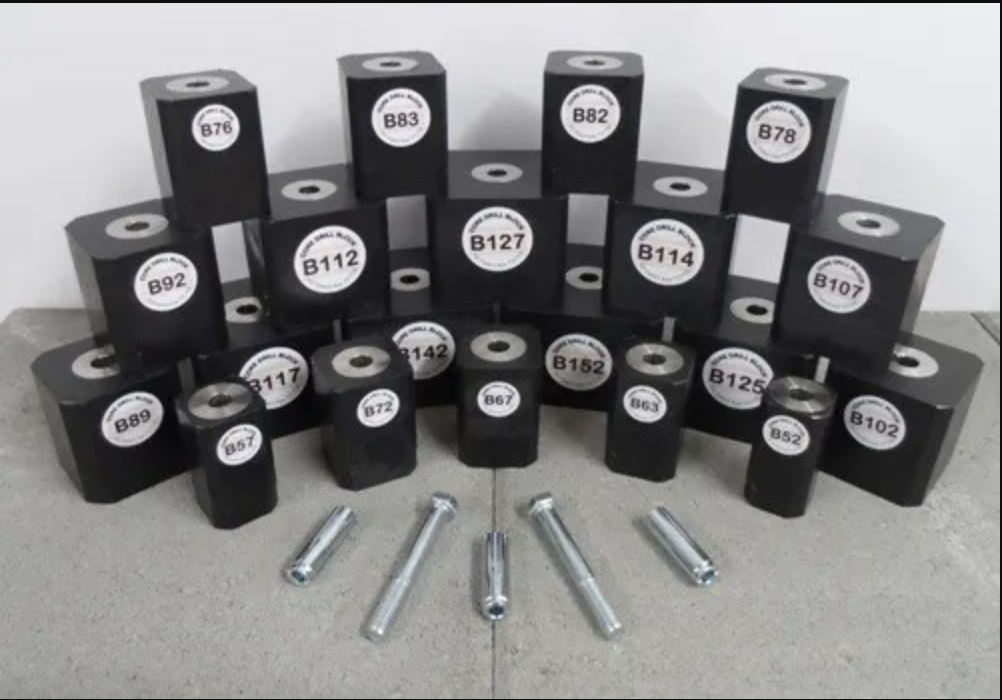

Sizes in stock:

B "Standard" series - 90 degree coring only:
B78mm - $50 ea Incl GST
B127mm -  $75 ea Incl GST

AB "Angle Block" series - 90 degree and angled drilling:

AB115mm - $95 ea Incl GST
AB132mm - $105 ea Incl GST
AB152mm - $125 ea Incl GST
AB182mm - $140 ea Incl GST
AB202mm - $150 ea Incl GST

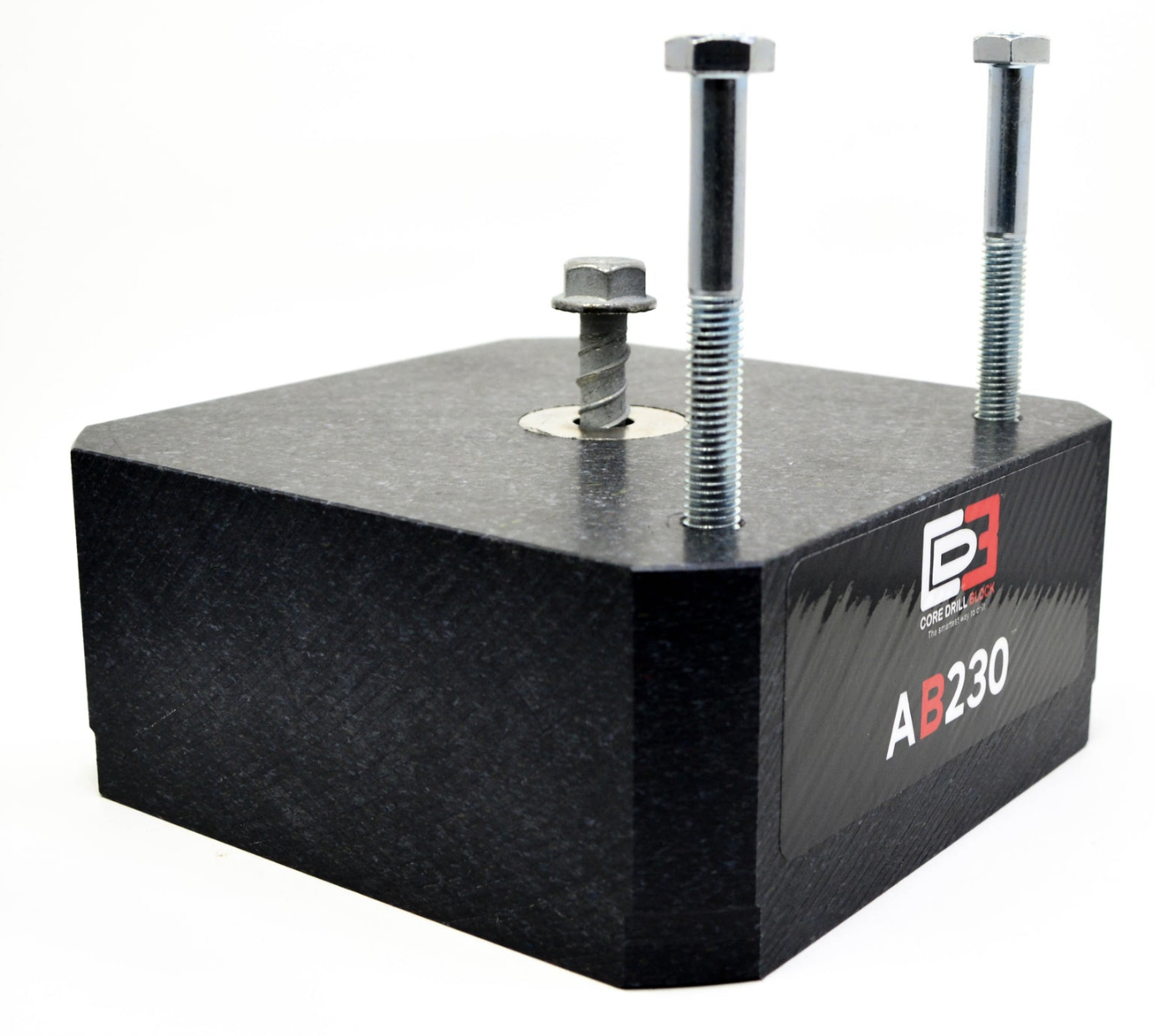

AB230mm  - $175 ea Incl GST
AB250mm - $195 ea Incl GST

Excalibur bolts - $6 ea
150mm anchor bolts with nuts - $20 ea
M12 anchors - $1 ea

How to use:

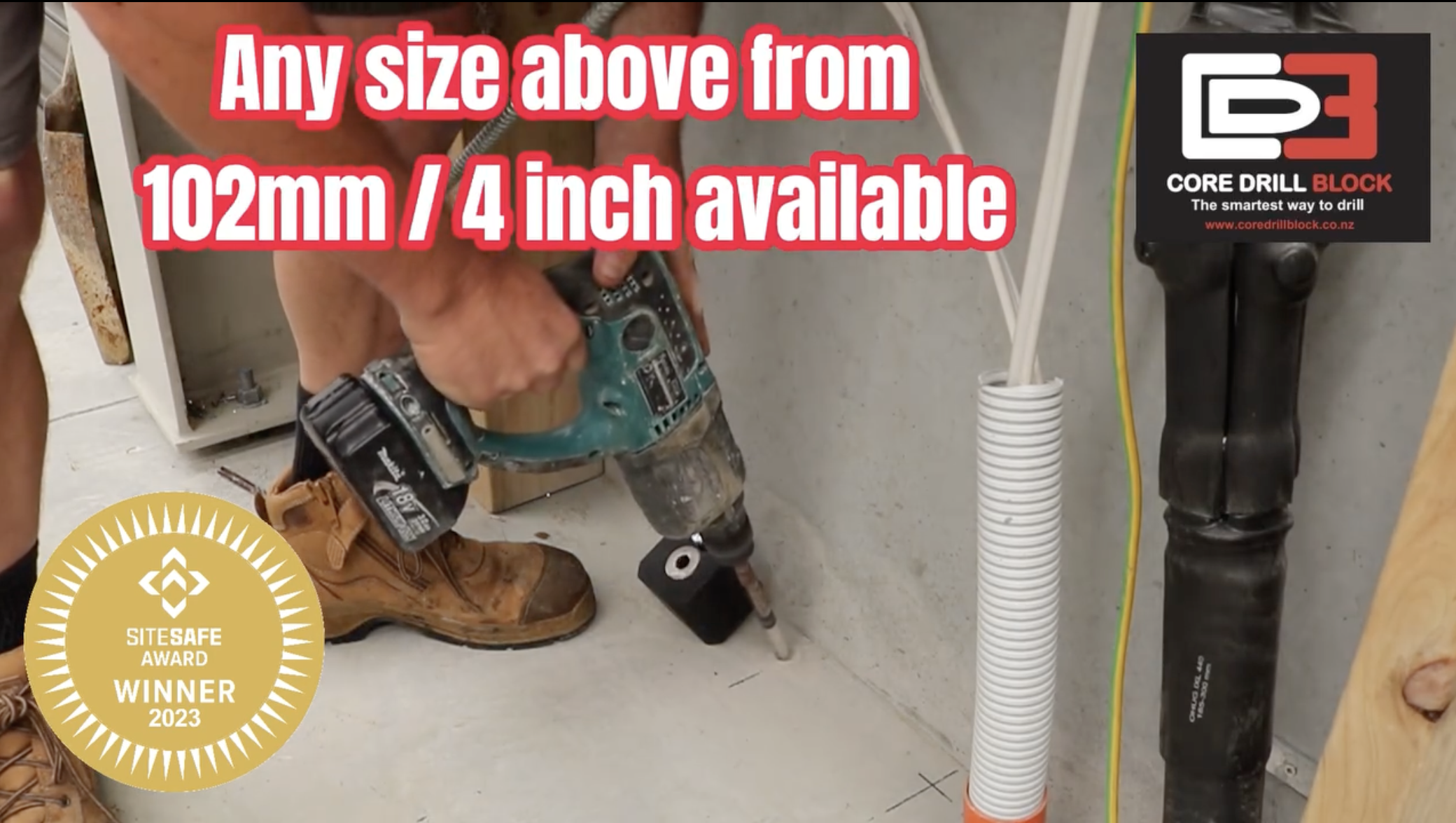

Drill the anchor hole at the angle you need to core at.
(10mm hole for flat coring with Excalibur bolt, or 16mm hole with M12 anchor inserted for angle drilling)

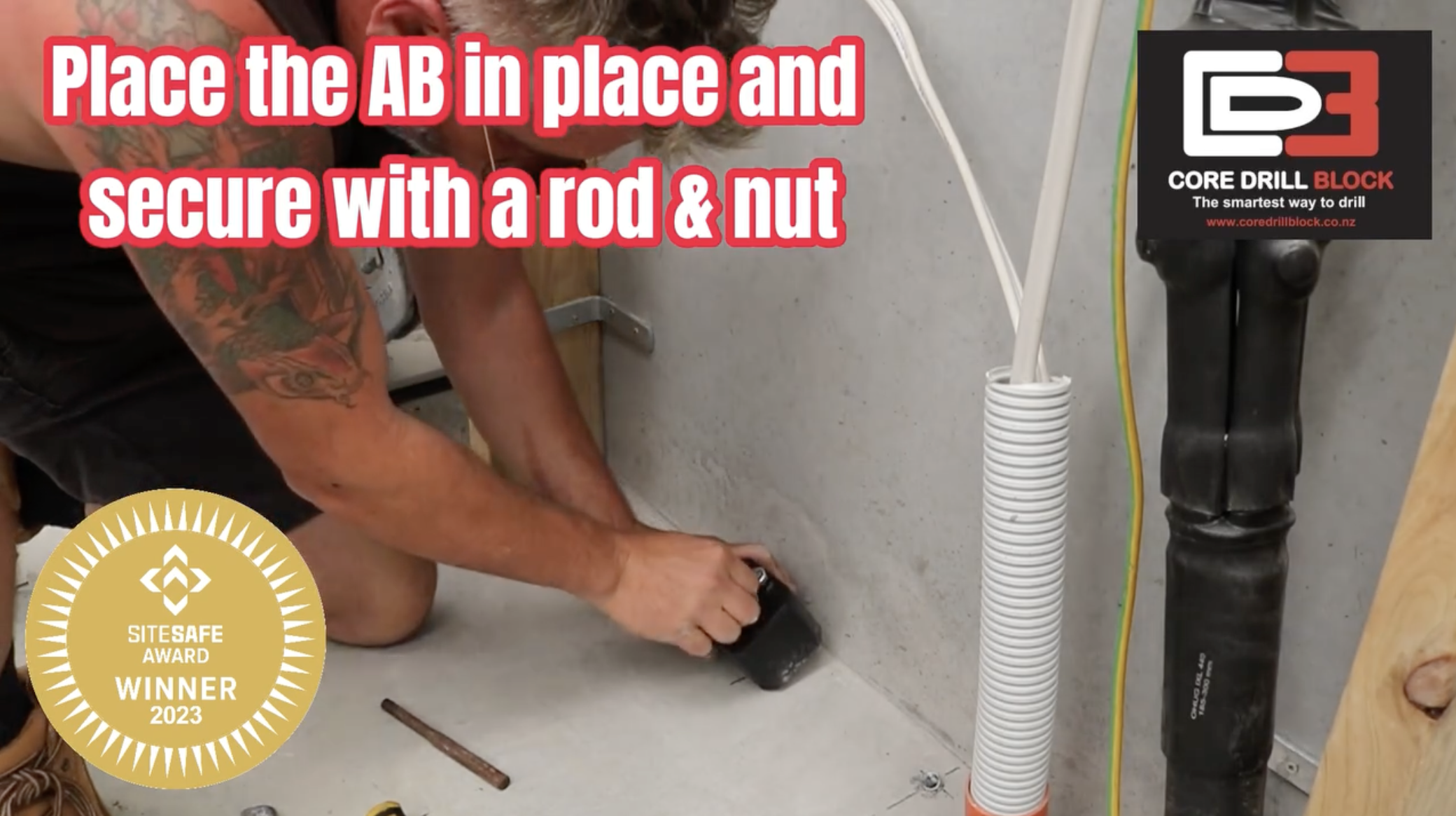

Securely bolt the core drill block down:
Use Excalibur bolt straight into concrete for flat coring, or 150mm M12 rod into M12 anchor for angle drilling.

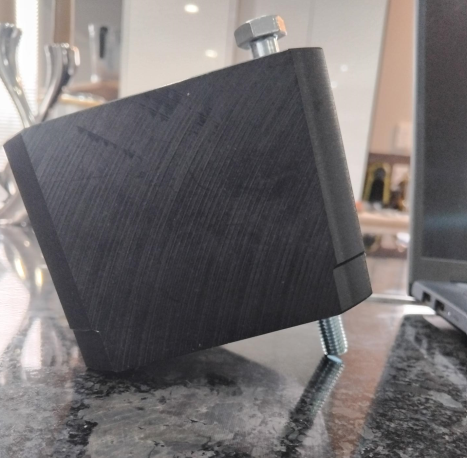

On angled drilling, use jacking bolt for stability (2 bolts on sizes 230mm and above).

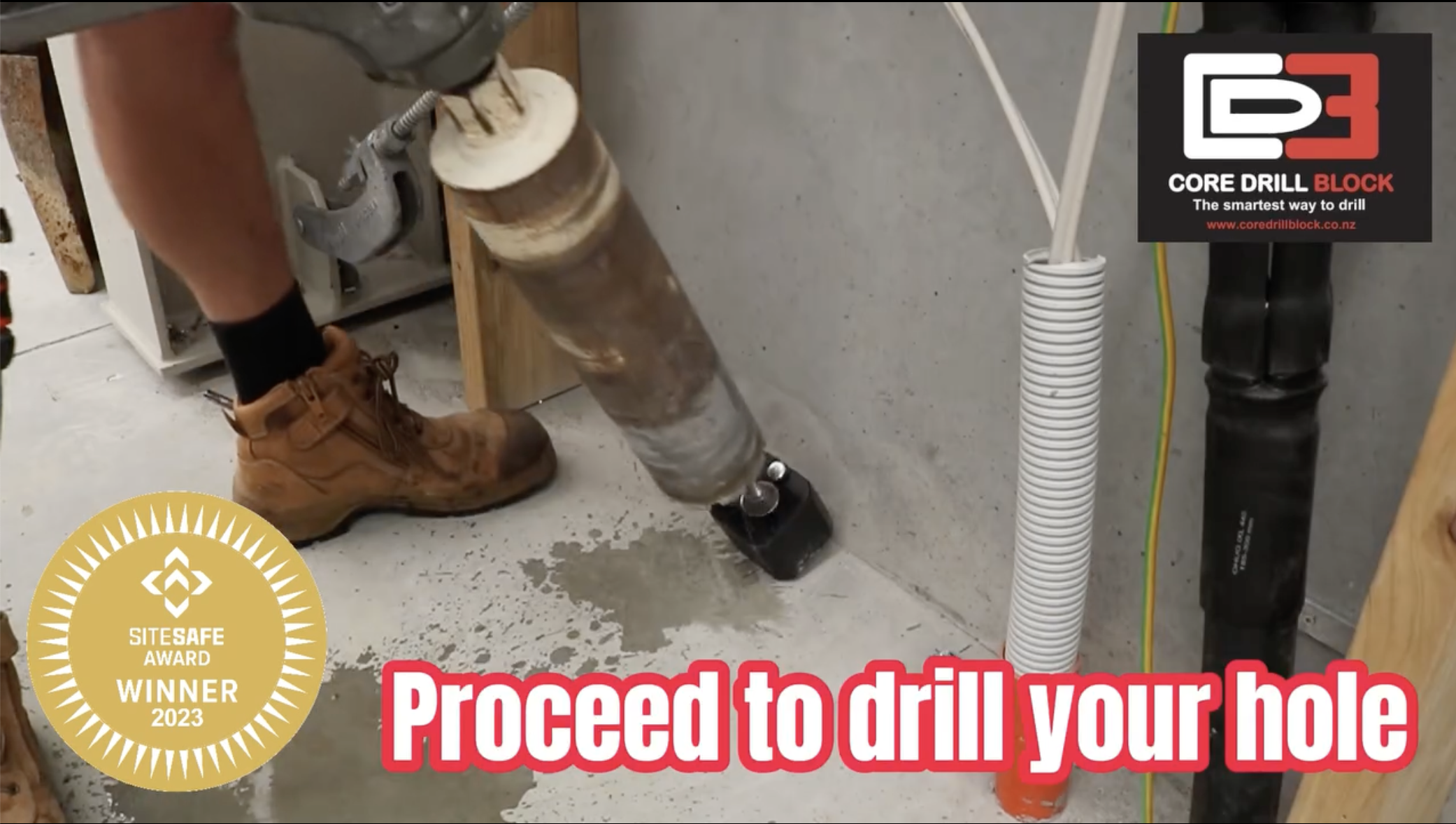

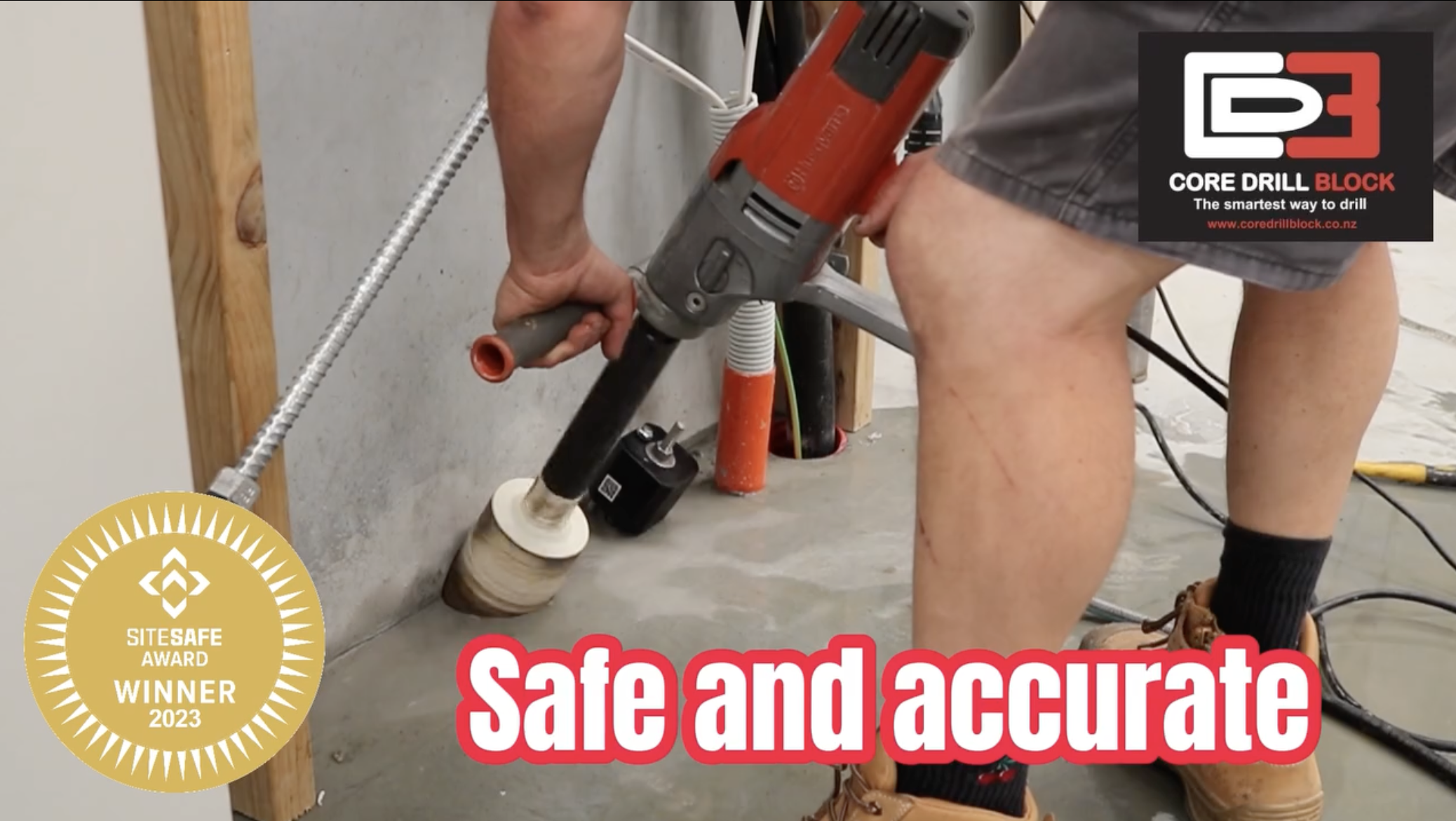

Start coring, using the core drill block as your guide

Remove core drill block after coring about 25mm deep.

Use the anchor hole to help remove the core.

See full video here

Threaded bar - 12mm, 150mm long with 2 nuts. $20 ea.
For bolting AB blocks down at angles. Also works well if drilling through a pipe can also secure the block with a nut either side with 12mm treaded bar.
Anchor main bolt with M12 anchors (drill 16mm hole) - available separately.
Note - drill main bolt at the same angle you wish to core at.

Prices correct as of 1/7/24 but subject to change.
