Core Drills - hand held

Here is our range of quality hand held core drills in stock in Bibra Lake, WA.
(All are suitable for use with a core drill stand. See our stands here)
See our "Used Machinery " page for refurbished units for sale.

How to choose:
Decide what largest diameter hole you are likely to drill.
Look for the a suitably sized drill with the options you need.
Plumbers and electricians often like the Dymaxion PCD1700H as it is big enough for their needs, and the least expensive option.
Fencing contractors like the Tooltech TT2100 as it is a simple yet powerful drill at a great price.
The Dymaxion AGCDM160 has a big motor with extra features like soft start and variable speed.
The Eibenstock PLD182 has the biggest drilling capacity and motor size, and German reliability and durability.
The Husqvarna drills offer many features not found on other drills (eg Elgard, SmartStart, Fleet Services™ system etc), but are more expensive price.

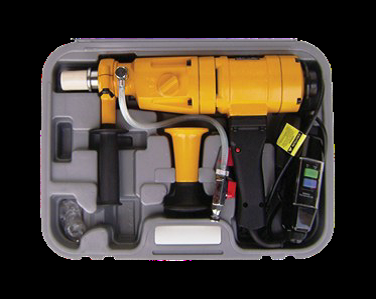

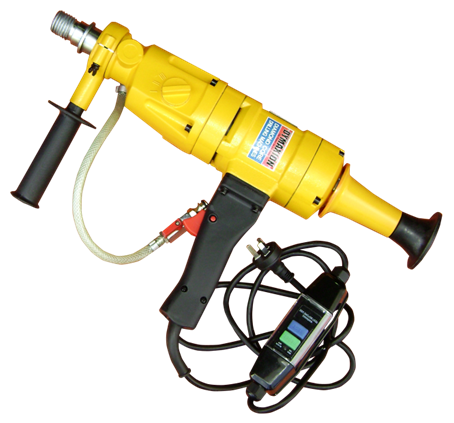

DYMAXION PCD1700HH CORE DRILL $850 incl GST

This basic machine design has been available for many years and is popular in the market due to its great value and reliability.


The machine casings are die cast from heavy aluminum and is fitted with three speeds including a low 950 rpm for large diameter hand held coring in soft materials (such as brick and limestone), while still providing 2400 rpm for smaller diameters needed in chemical anchor and glass fence balustrading.

  • 1700 watts
  • 3 speed
  • Max drill dia. Concrete - 90mm
  • Max drilling dia Brick - 133mm
  • 10kg
  • 10amp, RCD included
  • Mechanical clutch
  • 60mm collar
  • 1 1/4" UNC ONLY
  • 1 year warranty

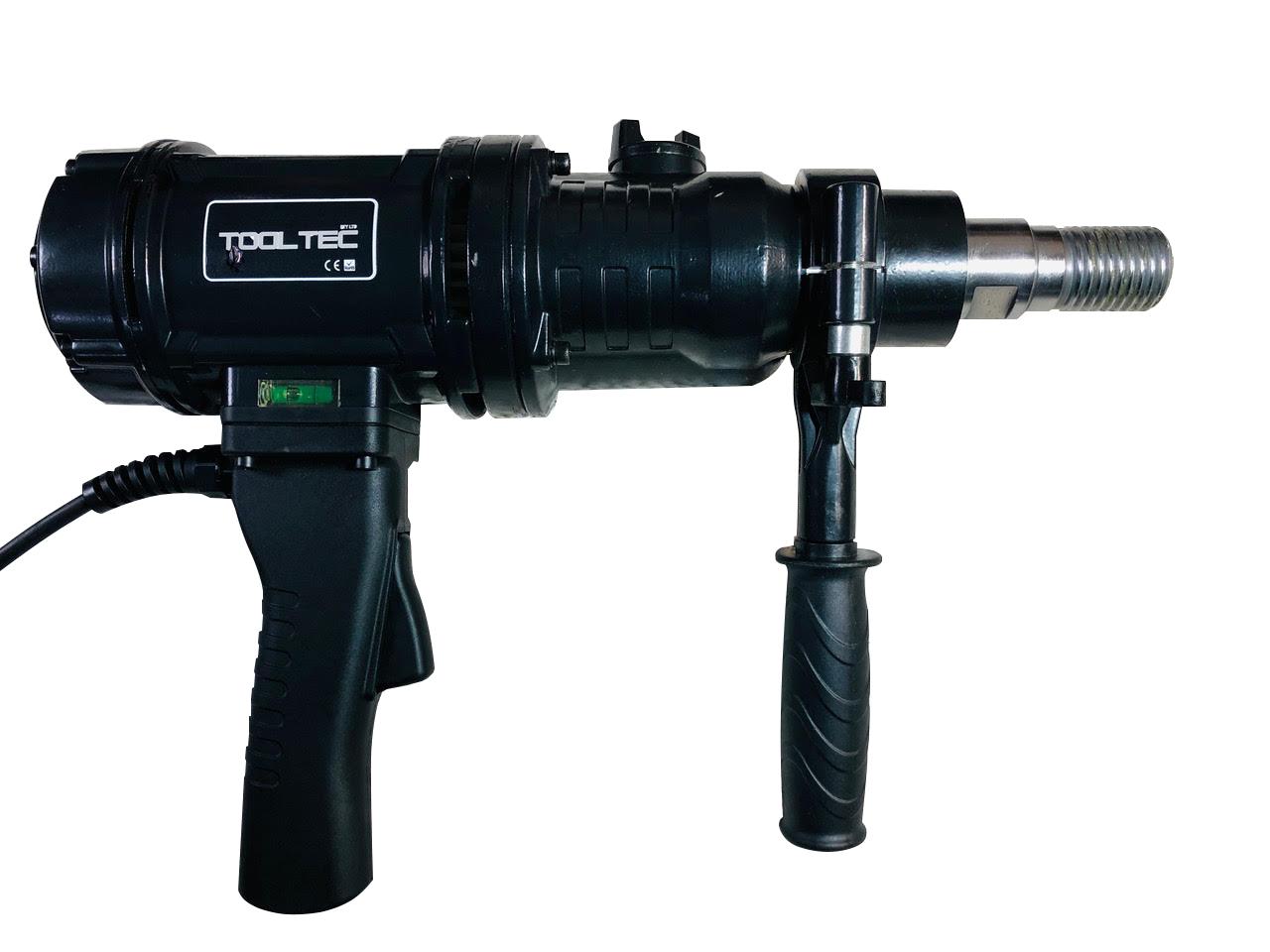

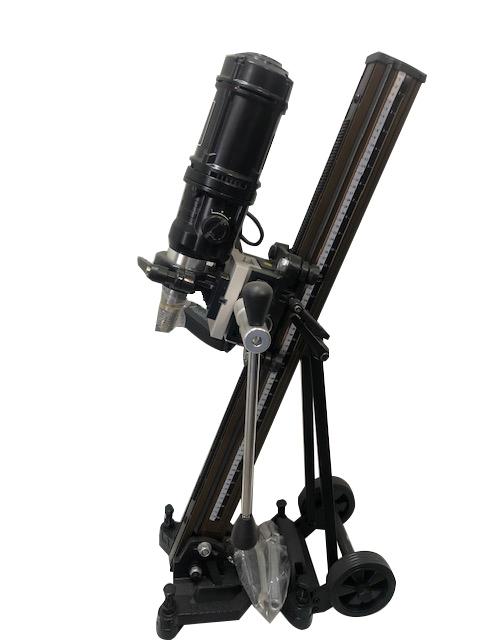

Tooltec TT2100 CORE DRILL
$1099 incl GST

This heavier duty core drill machine is ideal
for hire and fencing contractors



  • 2100 watt

  • 3 speed - 590 / 1310 /  2730 RPM

  • Up to 150mm in concrete, 200mm in brick (on stand)

  • Suitable for Rig Mounted or Hand Held

  • Collar Diameter: 60mm

  • Spindle Fitting: Male 1 ¼" UNC, 1/2" Female

  • Soft Start fitted

  • Overload Protection fitted

  • Clutch: Mechanical

  • R.C.D. fitted

  • 10amp plug

  • 7.1kg plus box and tools

  • Ideal for fencing contractors or hire

  • Suggested maximum drill size and speed selection (dependant on hardness of material):

    Fast - 35mm

    Medium - 65mm

    Slow - 150mm

  • 1 year warranty

  • $1099 incl GST
    (stand sold seperately)

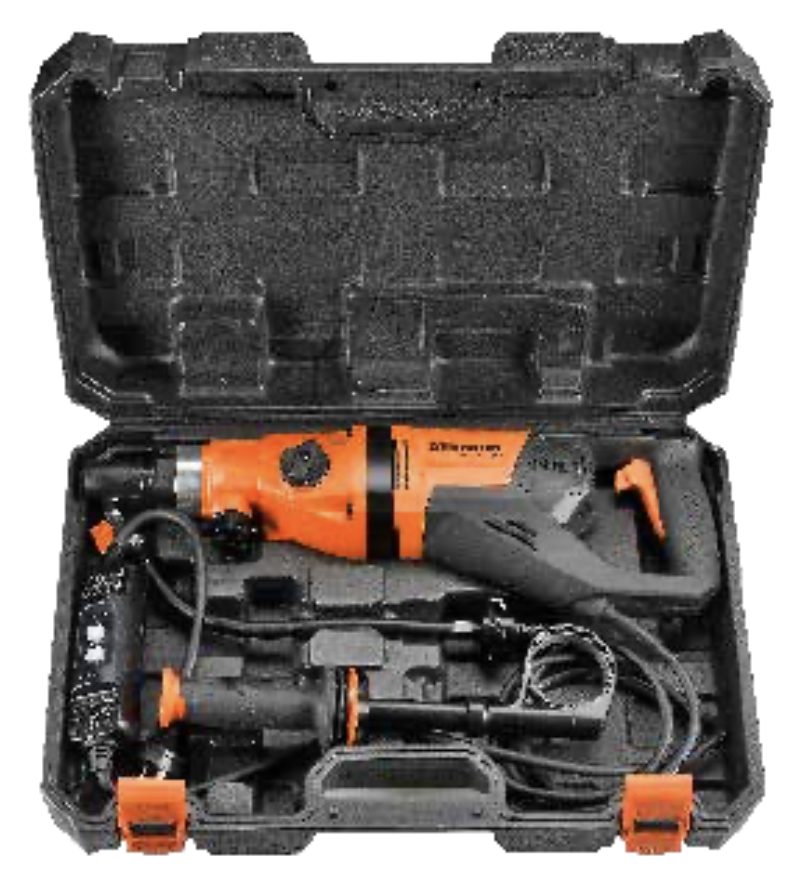

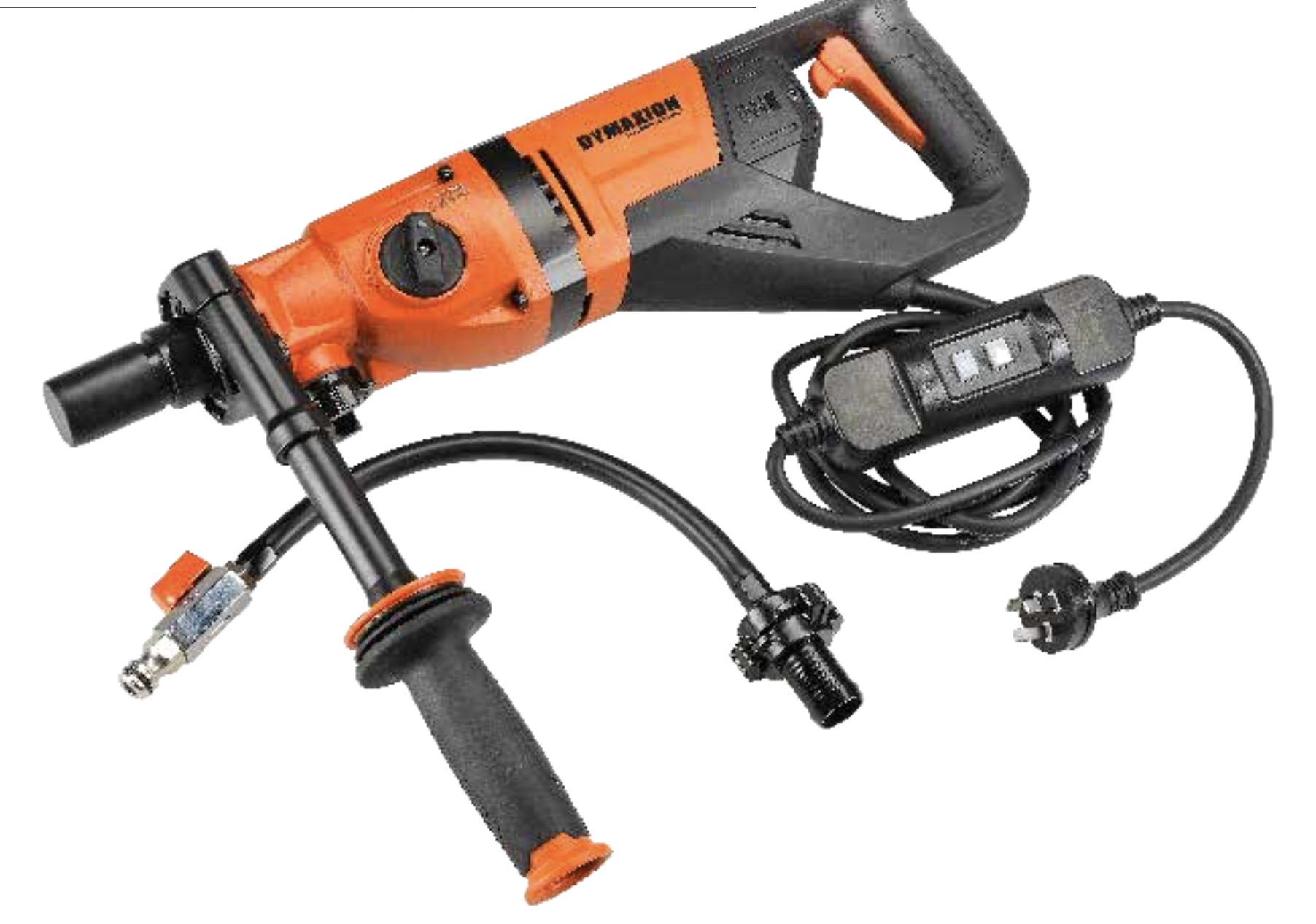

Dymaxion AGCDM160
$1475 each

Heavy duty core drill machine for concrete coring or brick.



Dymaxion AGCDM160 Core Drill  features:

  • 2000 watt motor

  • Soft starter motor

  • Variable speed  - ideal for starting

  • 3 speed gearbox

    (Speed 1 = 400-850 RPM

    Speed 2 = 750-1640 RPM,

    Speed 3 = 1550-3450 RPM)

  • Max 160mm - Concrete,

    200mm - Brick

  • With front handle for hand held drilling

  • Overload protection

  • RCD intergrated into power cord

  • 1 1/4" UNC (external) and R 1/2" (internal) drill bit connection

  • 60mm collar - suits most drill stands

  • Mechanical clutch

  • Water connection

  • 6kg

  • Supplied in case, with spanner and manual

  • 1 year warranty

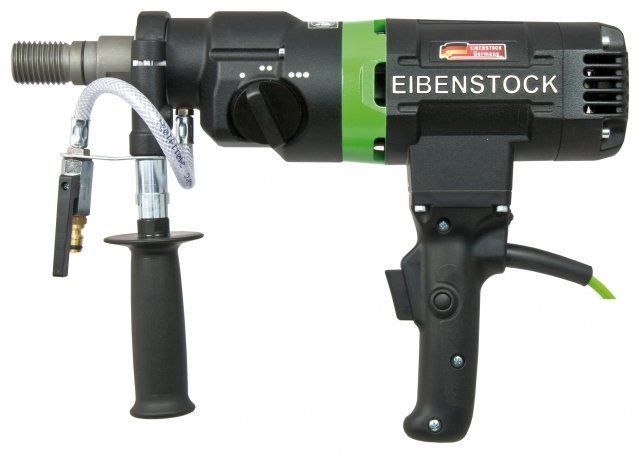

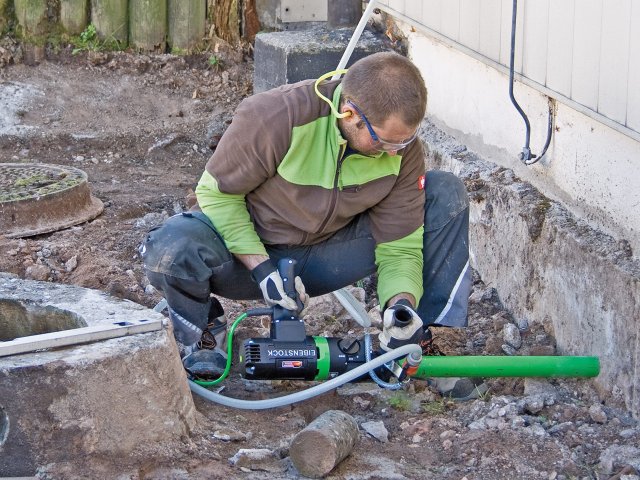

Eibenstock PLD182
$1995 incl GST

German performance and durability




Use:

  • Wet drilling in reinforced concrete, natural stone and asphalt

  • Drilling operators, civil engineering, sanitary, heating and ventilation construction, other installation companies, garden- and landscaping trade

    Features:

    • Made In Germany

    • Powerful 2150 W motor with high power reserves and a long lifetime, able for continuous work under pressure

    • 10 amp plug

    • Overload indication

    • 3-speed oil bath gearbox - for optimal lubrication in all working positions due to the specially developed oil pump and optimal adjusted torque-speed-ratio for all diameters

    • Mechanical safety clutch

    • Combination spindle with integrated connection for centering rod - fast, precise spot drilling

    • Ergonomic handle with large-dimensioned switch button - good control and effortless working

    • PUR-construction site cable - strong for heavy duty use

    • Use with water only

    • Integrated levels on machine

    • 1 year warranty

    • Supplied in case, with spanners and manual

Technical specifications:

Voltage: 230V
Power: 2150W
Rated speed: 520/1200/2500 RPM
No load speed: 1000/2200/4400 RPM
Drilling Diameter: 12-182 mm
Concrete drilling:
Low:  82-182mm
Medium: 42-82mm
High: 12- 42mm
Spindle: G1/2" and 1 1/4" UNC
Collar Size: 60mm
Machine Weight 7.5 kg

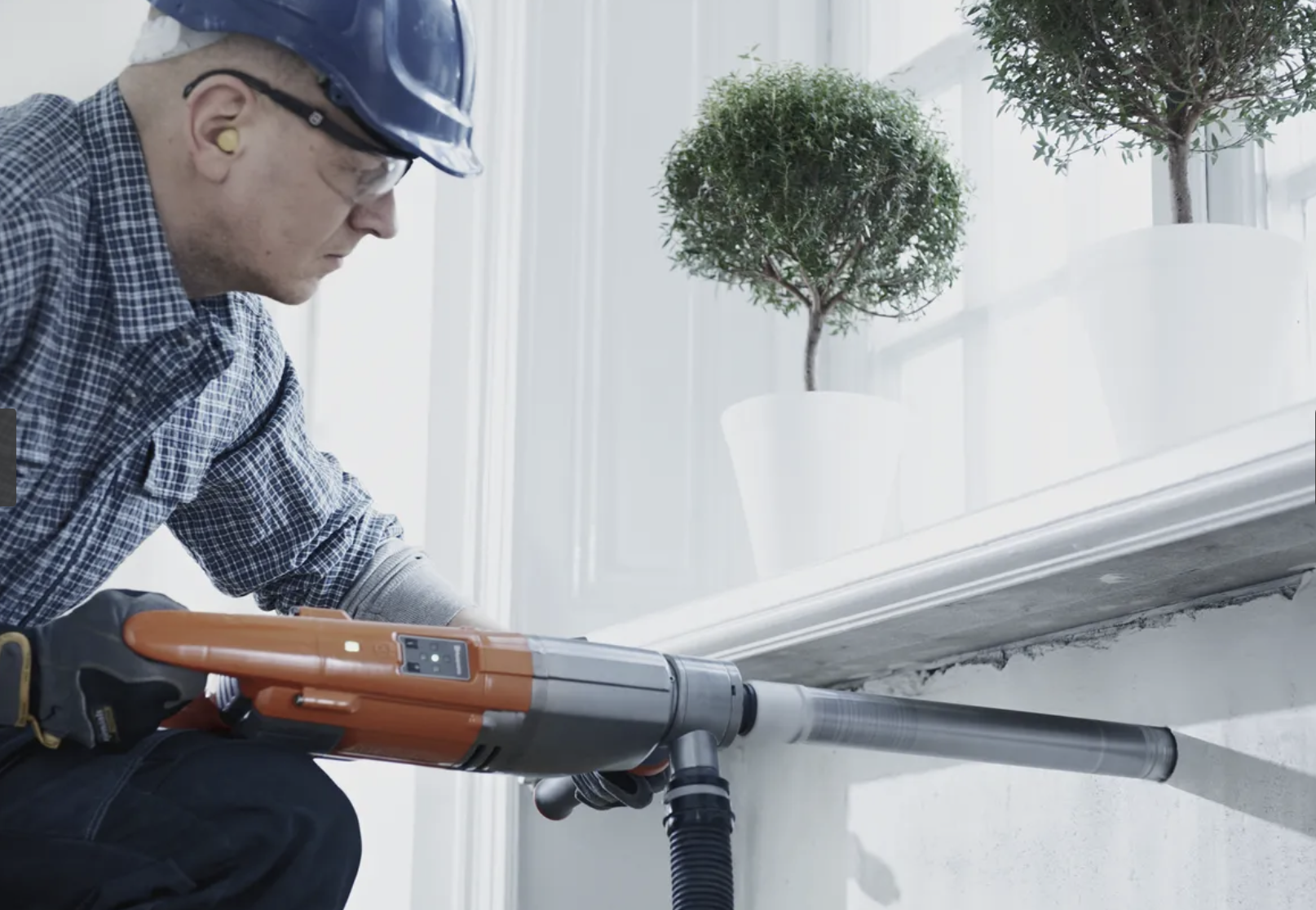

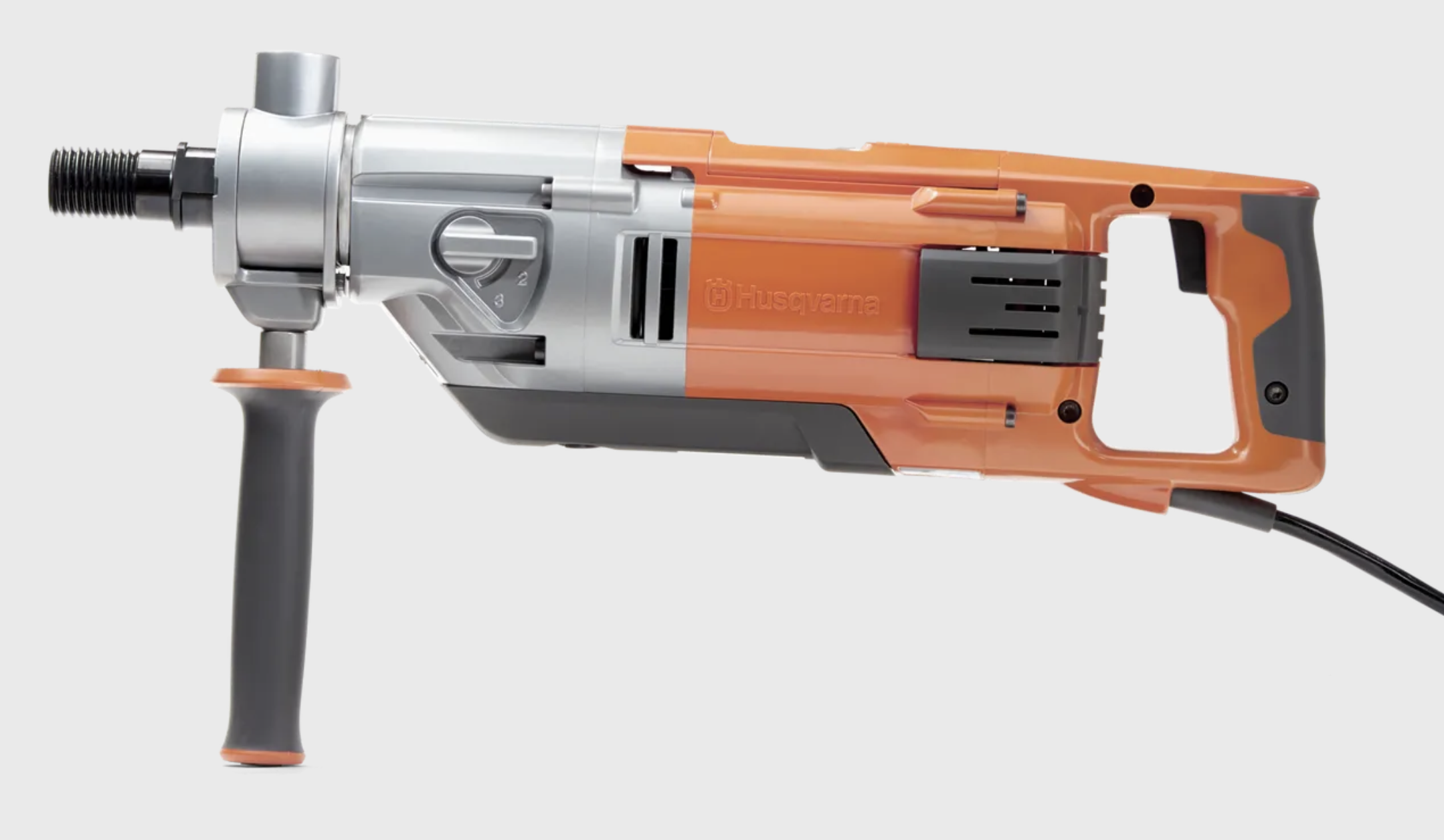

Husqvarna DM230 DRILL

The well known DM230 CORE DRILL is strong, reliable and durable.



Husqvarna DM230 core drill is a three-speed water-cooled gearbox for optimal drilling performance and longer service intervals.
When starting a hole or cutting through reinforcement speed can be reduced by half using SmartStart.
The handle has an integrated water hose and power cable.
Elgard™ means that if the motor runs at too high a load for a long period, it will start to pulsate. If the load is not reduced the motor will shut off, to prevent overheating.
Comes with case, spanners & manual.
12 month Australia wide warranty.

TECHNICAL SPECIFICATIONS:
Voltage: 230V
Power: 1850W
Drill diameter max - hand held 80mm
Drill diameter max - stand (not included) 150mm
Output: RPM 700/ 1700 / 3600 rpm
Output RPM at full load: 580/ 1400 / 2900 rpm
Water coupling: G 1/4"
Mounting collar: 60mm
Spindle thread, outer: 1 1/4" UNC
Spindle thread, inner: G 1/2"
Weight 7 kg

Note:

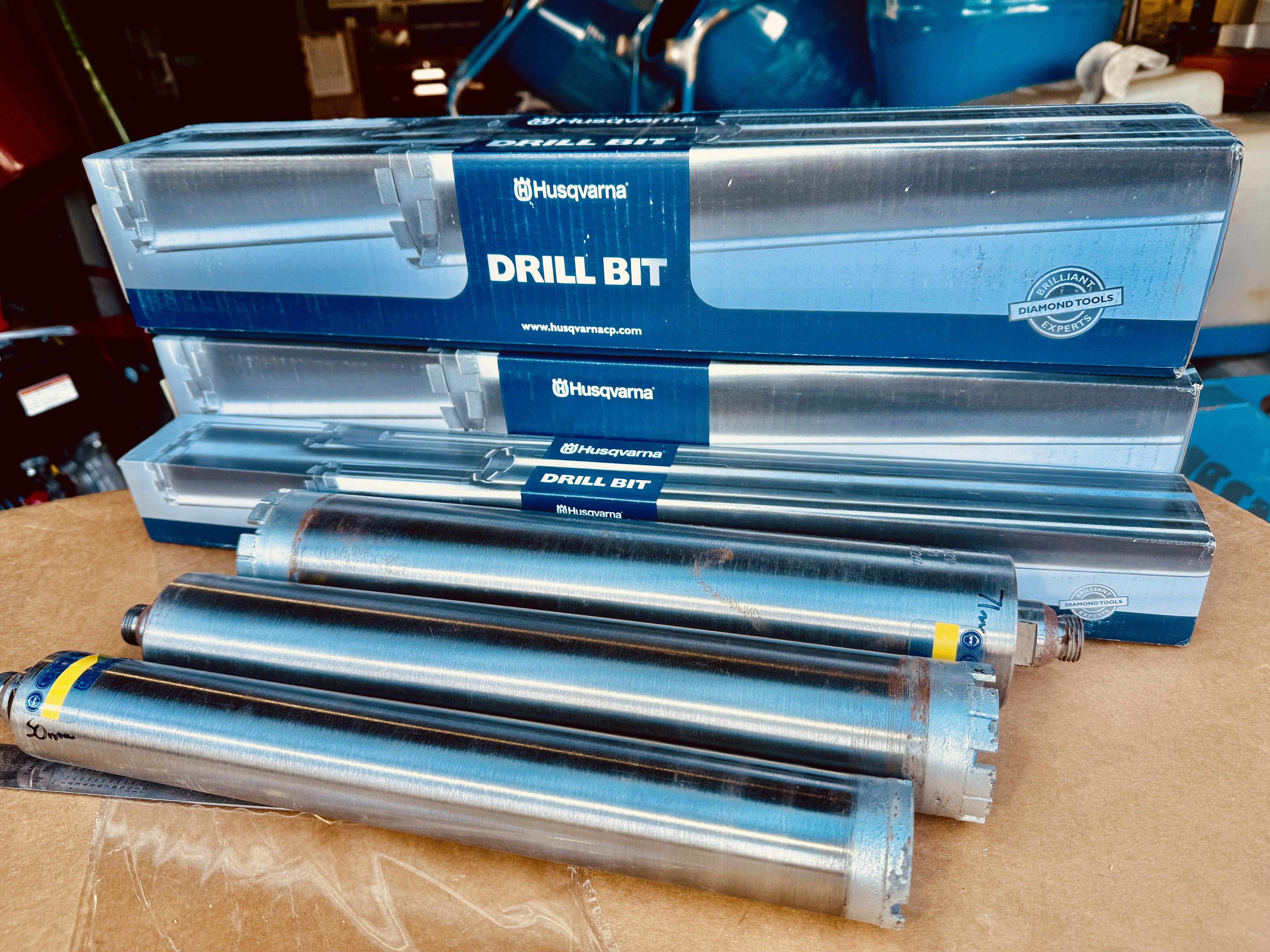

  • Core barrels and drill stands are shown for illustrative purposes only - not included in the price!
  • Read safety instructions and operation manual before use
  • Wear appropriate personal protection equipment (PPE)
  • Core drills and RCD are not waterproof (usually IP55)- keep them out of the water!
  • Core drills have big motors - ensure there is sufficient power available to run them
  • Do not use the overload protection as on/off switch - when the overload fails, it will not be warranty
  • Do not run off generators - they may not be 240 volt, 50Hz, or are usually too small for the drill
  • Use only heavy duty (2.5mm minimum but preferably or 4mm) extension cords and keep them as short as possible  (under 20m).
  • Use the right speed for the diameter of the barrel (see your manual or here)
  • Coring over 60-70mm diameter, most manufacturers recommend using a stand with your drill.
  • Only change gear when motor not running.
  • Put vacuums on a seperate circuit so as not to overload each circuit.

For the operation and spare parts manuals for these machines  Click Here

For a detailed look at Core Drilling, from selecting your core drill to actually drilling  plus all the UDT core drilling supplies; download the guide below.

Download the UDT Core Drilling Guide

Core Drill parts:

We carry oil, gaskets, o-rings and brushes in stock for the Husqvarna DM230 core drill.
Golz core drill (FB33P and FB33S) parts are usually available ex Perth 1-2 days.
We also carry generic parts like RCD's, water fittings, motor brushes and front handles.
See here

See our "Used Machinery " page for refurbished units for sale.

Prices correct as of 1/2/24 but subject to change.

Core drill troubleshooting:

Motor not turning:

Power point not working Try another power point
Incorrect power  - Do not run off generators
 - Extension cords too long
 - Extension cord not heavy duty enough
Brushes Check brushes not worn and moving freely
RCD not working Replace by electrician
Overload (if fitted) tripped out Reset - may need to wait till drill cools
Damaged cable Usually between RCD and drill - replace

Motor turning but no power - clutch may need to be retightened to factory specifications.

Silica dust - when workers cut, crush, drill, polish, saw or grind products that contain silica, particles are created, which are one-hundredth of the size of a grain of sand. These can get  stuck deep in the lungs.
Ensure precautions to limit exposure to dust are in place.
See the WA government's info on silica dust here.
