Core Drill Accessories

United Diamond Tools carry a large range of core drilling supplies.

We stock and sell:

Drill Extensions:
- 1/2" male to female. 150mm ($65 ea) and 300mm long ($95 ea)
- 1 1/4" UNC male to female:
150mm ($85 ea)
300mm ($125 ea)
500mm ($185 ea)
750mm ($250 ea)
Note - Allow for extra weight of extension ie use a slower speed and/or less pressure on bit.

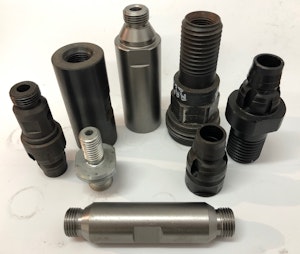

Adaptors:
- From 1/2" male to 1 1/4" UNC female ($75 ea)
- From 1 1/4" UNC female to 1/2" female (from $55 ea)
- 1/2" male to 1/2" male ($35 ea)
- 1/2" female to 1/2" female ($35 ea)
- Weka adaptor - 1 1/4" UNC female to 1/2" female ($80)
- 1/2" male to 1 1/4" UNC male adaptor ($125)
- Hilti DD100/120/130 and DD150 to 1 1/4"UNC ($125 ea)
- Hilti BL/BS/BR to 1 1/4" UNC ($125 ea)
- Other Hilti adaptors as shown
- SDS Plus or hex to 1/2" male BSP - short. For dry core cutters on SDS drill ($30 ea)
- SDS Plus or hex to 1/2" male BSP - long. For dry core cutters on SDS drill ($45 ea)
- SDS Max to 1/2" male BSP - 260mm long. For dry core cutters on SDS drill ($60 ea)
- SDS Plus to 1 1/4" UNC (use 1 1/4" barrels on your SDS Plus drill) $85 ea
- SDS Max to 1 1/4" UNC (use 1 1/4" barrels on your SDS Max drill) $95 ea
- SDS Max to SDS Plus (use SDS Plus bits on your SDS Max drill) $125 ea
Other adaptors also available

Quick Release for Core drill - 1 1/4" UNC
Consists of a male end and a female end.
Male end is 1 1/4" core bit (screws into your barrel).
Female end connects to any core drill with 1 1/4" male connection.
You don't have to take off the core bit from core drill with a spanner, only take seconds to release the chuck, then done!
Also you can use several male ends to connect different diameters of core bits to a core drill.
$100 each Incl GST
Male only end (leave on your core barrels) $45 each Incl GST

Core Drill spanners:
Budget - 32mm ($30 incl GST) and 41mm ($35 incl GST). Heavy, chunky but strong and well priced.
German (DIN894) - 32mm ($45 incl GST) and 41mm ($55 incl GST). Lighter, strong, but more expensive

Core Drills and drill rigs (stands) - see our page in Machinery here

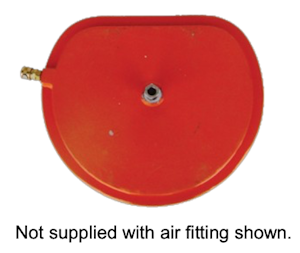

Dymaxion Vacuum Plate:
With seal, hold down stud (with nut & washer) and tap on inlet (barb fitting).
440mm x 380mm
$195 ea incl GST
( Dymaxion Air Hose Connection Kit - 3m of hose, with two Nitto female connectors. To join vac pump to tank, tank to vac plate $60 ea)

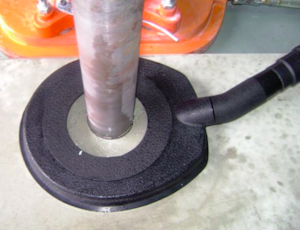

Dymaxion Vacuum Suction Sets:

The vacuum suction pipe is inserted into the ring take off which then sucks out water or dust into your wet/dry vacuum. The inner reducing rings increase the suction efficiency depending on the core drill bit diameter. These ring sets can be used in conjunction with normal masonry or concrete power drill operations where dust and typical drilling debris cause concern. The master suction ring will grip onto most wall or floor surfaces. The more powerful vacuum you use will increase the overall performance.

Small Set AGVCPS : $75	Large Set AGVCPL : $95
Open Ring Diameter: 80mm	Open Ring Diameter: 150mm
Inner Rings: 60, 45 & 40mm	Inner Rings: 115 & 125mm

Also available -
Tyrolit Hydrostress Water Retaining Ring - up to 152mm.
$130 incl GST

Dymaxion Vacuums and Base Plates:
- The VACPLATE is a universal device - it has a centre bolt rising from the centre of the plate over which the core drill rig is positioned via the centre U slot that is available on all core drill rig bases, with a large washer (which grips the base) the nut is then tightened down. An example of its use would be a perfect floor (tile/granite) that has to be drilled for a new lavatory bowl - the VACPLATE will not leave a mark on the floor but will hold the rig firmly for drilling.
See our range of vacuum pumps on our separate page here.

Core Lifter
The Core Lifter by Golz is a quick easy way for lifting cores out of the hole after drilling. Use the cold chisel to snap the core off (taking care not to damage the holes edge), then use the "lasso" to loop around the core. Use the cold chisel as a handle to lift the barrel out of the ground.
Only $30 incl GST each

Core Barrel Puller - for pulling stuck barrels out (1 1/4" UNC to lifting eye)
Hook screwed into bolt and welded.
$110 each Incl GST
Core Carrier:
Handle simply screws into the barrel for carrying larger barrels around with ease.
Syntech plastic (30kg rated) $25 incl GST Each
Tyrolit steel $50 incl GST Each

Tyrolit Drill Stand quick release anchor - standard $60 incl GST (on left below)
Eibenstock Drill Stand quick release anchor kit $65 incl GST (on right below)
Drop in Anchors - $1 each, or $50 per box (50). All prices incl GST.
Drop in anchor setting tools 190mm, zinc plated $15 each
Setting tool with hand guard $20 each inc GST
Tyrolit setting tool with hand guard $40 each incl GST
16mm SDS Plus drill bits from $23 ea Incl GST

This UDT Core drilling guide shows you how to fasten a drill rig before drilling.
See HERE.

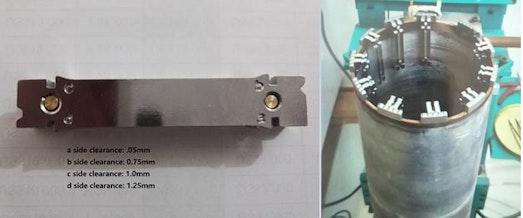

Core Re Tipping Tool and Segments:
We sell the magnet segment holders to enable you to solder on your own segments on when retipping your core barrels.
See them on our Retipping Core Barrels page here

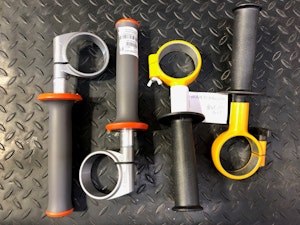

We stock the front handle assembly to suit all core drills with 60mm mounting collar (will fit Weka, Husqvarna, Golz etc with 60mm collar).
Dymaxion - $45 ea incl GST
Husqvarna DM230 $85 ea incl GST

Inline RCD (aftermarket) to suit core drills, wet saws etc
Rated 16amp, 3600watts
RCD only $88 incl GST.
RCD with 3 pin plug and lead $125 incl GST.
Note: - IP55 - protected from water splashes but not for water immersion.
- "Load" side is for drill, "Power" is 3 pin plug
- Must be installed by an electrician
- Do not use as on/off switch
See photo above.

Download basic core drill servicing info here

For spare parts, see here

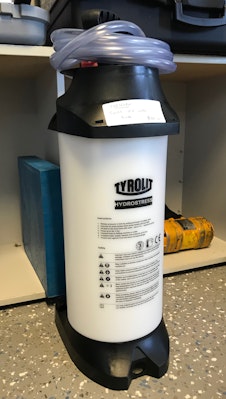

Golz 10 litre portable pressure tank: $299 each:
No water where you are cutting or coring? This will solve your problems. The 10 litre Golz tank is built tough for drilling and coring situations, and will fit most quick cuts and core drills. It has a pressure gauge built in as well.
