Premium Core Barrels

Our Premium core barrels are made in Korea, and larger sizes feature Zenesis diamond array for fast and efficient coring.
They are laser welded to eliminate segment loss through over heating.
Our barrels are suitable for drilling concrete with and without steel reinforcement.
Our range includes diamond core barrels for the fencing and balustrade contractor, professional concrete cutters, as well as plumbers, electricians, pest controllers, air conditioning installers and builders.

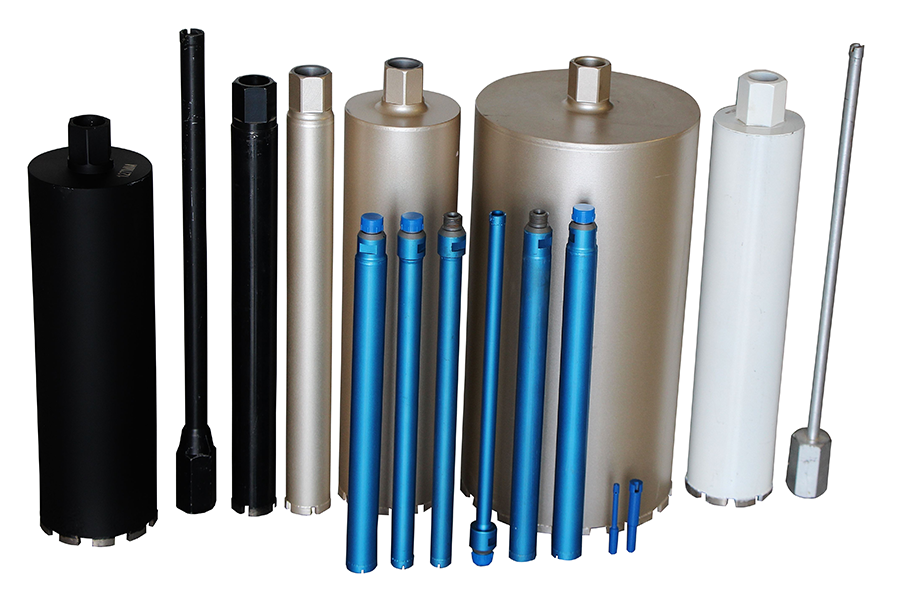

We stock barrels in 350mm, 450mm, 600mm and 800mm lengths.

We also stock barrels for very hard concrete, lots of aggregate or with a lot of steel reinforcement.
These laser welded core drill bits have Zenesis segments, meaning the diamonds are set in an organised pattern rather than randomly scattered, and has a very soft bond. They will handle very hard materials - even granite in some cases.

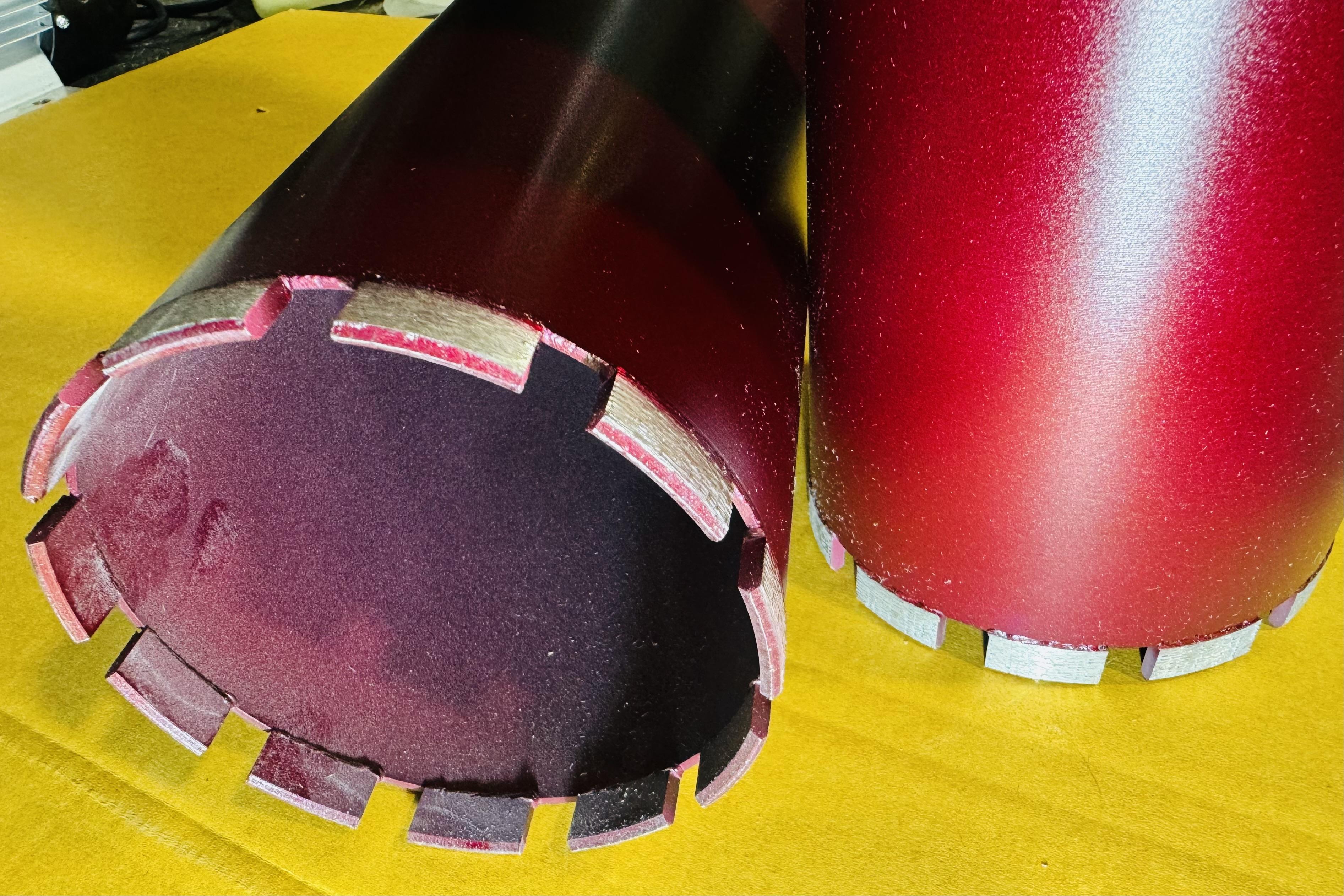

All are easily recognisable as they are red, 450mm long and 1 1/4" UNC only.

Note - when  drilling concrete with a high strength (or MPA), or with very hard aggregate in it, the bit may glaze up and need redressing. Do this by reducing the water by half for a few minutes, or by drilling into an abrasive material like limestone, a cinder block or similar. A bit of Ajax or builder's sand down the hole can also have the same effect.

If your require barrels to core abrasive materials (asphalt, limestone or green concrete), see our Limestone Barrels page.

We also sell core barrels  specifically designed for coring into laterite ( rusty-red coloured  blocks used in W.A.) that will save you time, and money.  See our "Limestone Barrels" page.
We also supply selected barrels to core granite (or similar non abrasive materials) - see the last two entries on table below, and this page.


United Diamond Tools can also arrange manufacture of special core barrels which are used in the mining industry. Should you require a special build core barrel for coring into mineral samples, then we can build a core barrel to suit.

Our smaller barrels (up to 40mm) have a male 1/2" Gas/BSP BEF (back end fitting), and all sizes above are 1 1/4" UNC female BEF.

See also our dry cut core cutters here. They can be used with ordinary drills.

We also stock and sell:
 - Extensions - 1/2" and 1 1/4" UNC types (150mm and 300mm)
 - Adaptors - from 1/2" to 1 1/4" UNC, or Hilti to 1 1/4" UNC
See our "Core Drill Accessories and Spare Parts" page for further info here.

For a more detailed look at Core Drilling, from selecting your core drill to actually drilling,  plus all the UDT core drilling supplies, download the guide below.

Note - For operator safety, most manufacturers recommend drilling over 67mm be done with the drill mounted in a stand.
If in doubt, contact us,  the barrel or drill manufacturers.

Download the UDT Core Drilling Guide

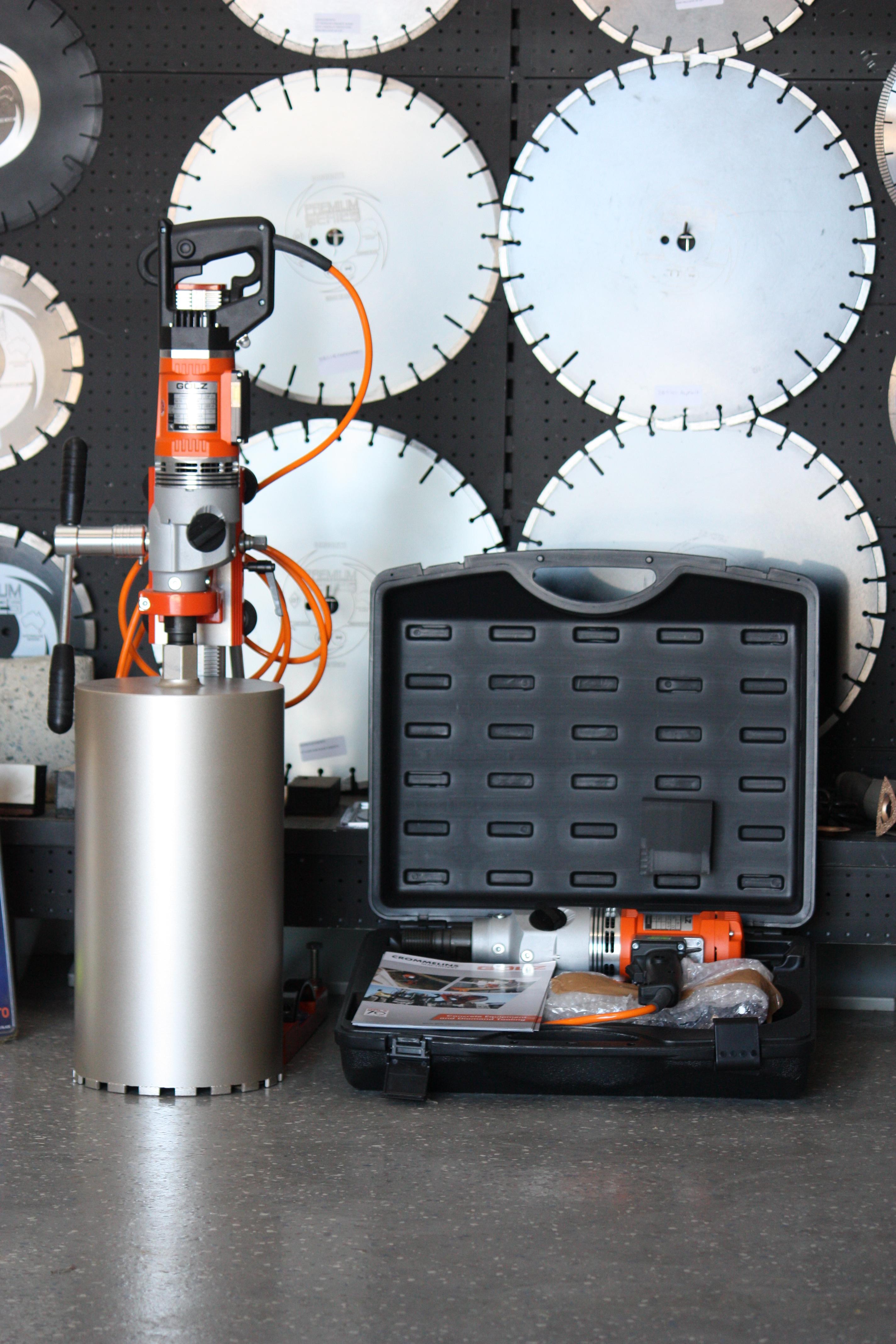

img_5635.jpg img_3515.jpg img_5747.jpg

For less expensive barrels with pricing, see our "Husqvarna, Clipper and Tyrolit" core barrels here
and "Trade Series" barrels here.


Code Description
Quality
Fitting
Size
Price
DBS14CON Concrete
Premium
1/2" BSP
14mm
$99
DBS16CON Concrete
Premium
1/2" BSP
16mm
$99
DBS18CON Concrete
Premium
1/2" BSP
18mm
$90
DBS20CON Concrete
Premium
1/2" BSP
20mm
$99
DBS22CON Concrete
Premium
1/2" BSP
22mm
$99
DBS24CON Concrete
Premium
1/2" BSP
24mm
$99
DBS25CON Concrete
Premium
1 1/4" UNC
25mm
$125
DBS28CON Concrete
Premium
1/2" BSP
28mm
$110
DBS30CON Concrete
Premium
1/2" BSP
30mm
$115
DBS32CON Concrete
Premium
1/2" BSP
32mm
$121
DBS35CON Concrete
Premium
1/2" BSP
35mm
$121
DBS40CON Concrete
Premium
1/2" BSP
40mm
$145
DBS42CON Concrete Premium 1/2" BSP
42mm
$150
DBS52CON Concrete Premium  1 1/4" UNC
52mm
$185
DBS52VHC Very hard concrete Zenesis
1 1/4" UNC
52mm
$175
DBS65CON Concrete Premium
1.1/4" UNC
65mm
$180
DBS65VHC Very hard concrete Zenesis
1 1/4" UNC
65mm
$195
DBS72CON Concrete
Premium
1 1/4" UNC
72mm
$190
DBS77CON Concrete
Premium
1 1/4" UNC
77mm
$210
DBS77VHC Very hard concrete
Zenesis
1 1/4"UNC
77mm
$230
DBS82CON Concrete
Premium
1.1/4" UNC
82mm
$215
DBS85VHC Very hard concrete
Zenesis
1 1/4" UNC
85mm
$245
DBS92CON Concrete
Premium
1.1/4" UNC
92mm
$245
DBS92VHC Very hard concrete
Zenesis
1 1/4" UNC
92mm
$275
DBS102CON Concrete
Premium
1.1/4" UNC
102mm
$270
DBS102VHC Very hard concrete
Zenesis
1 1/4" UNC
102mm
$295
DBS108CON Concrete Zenesis
1 1/4" UNC
108mm
$270
DB115CON Concrete Premium
1.1/4" UNC
115mm
$270
DBS115VHC Very hard concrete Zenesis
1 1/4" UNC
115mm
$300
DBS126VHC Very hard concrete
Zenesis
1 1/4" UNC
126mm
$305
DBS128CON Concrete
Premium
1.1/4" UNC
128mm
$275
DBS128CON600 Concrete
Premium
1.1/4" UNC
128mm x 600
$345
DBS132CON Concrete
Premium
1.1/4" UNC
132mm
$315
DBS132VHC Very hard Concrete
Premium
1 1/4" UNC
132mm
$375
DBS152VHC Very hard concrete
Premium
1 1/4" UNC
152mm
$350
DBS152CON Concrete
Premium
1.1/4" UNC
152mm
$350
DBS162CON Concrete
Premium
1.1/4" UNC
162mm
$395
DBS178CON Concrete
Premium
1.1/4" UNC
178mm
$415
DBS182VHC Very hard concrete
Premium
1 1/4" UNC
182mm
$495
DBS202CON Concrete
Premium
1 1/4" UNC
202mm
$475
DBS225CON Concrete
Premium
1 1/4" UNC
225mm
$495
DBS250CON Concrete
Premium
1.1/4" UNC
250mm
$595
DBS52G Granite
Premium
1.1/4" UNC
52mm
$175
DBS102G Granite
Premium
1.1/4" UNC
102mm
$270

For less expensive barrels with pricing, see our "Husqvarna, Clipper and Tyrolit" core barrels here
and "Trade Series" barrels here.

Prices correct as of 1/2/24  but subject to change. Includes GST, each only.

Silica dust - when workers cut, crush, drill, polish, saw or grind products that contain silica, particles are created, which are one-hundredth of the size of a grain of sand. These can get  stuck deep in the lungs.
Ensure precautions to limit exposure to dust are in place.
See the WA government's info on silica dust here.
