Guarda Dustless Power Cutters

We sell, service and repair the award winning dustless Guarda Power Cutters.
Controls dust, slurry and engine exhaust gas with the power of petrol cutting.


Now in stock!

Here is a 60 second video of Steve from Guarda demonstrating the Edge saw at our demo night recently.

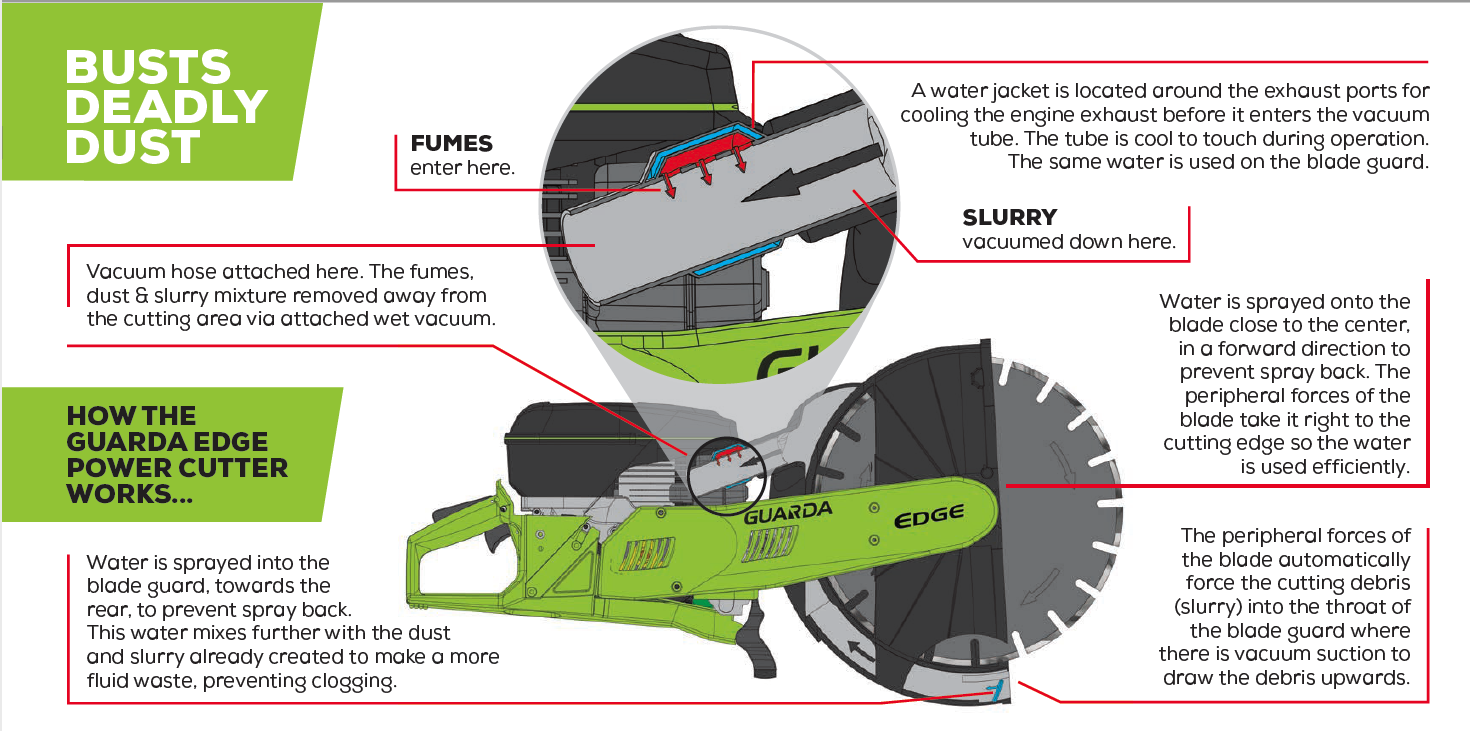

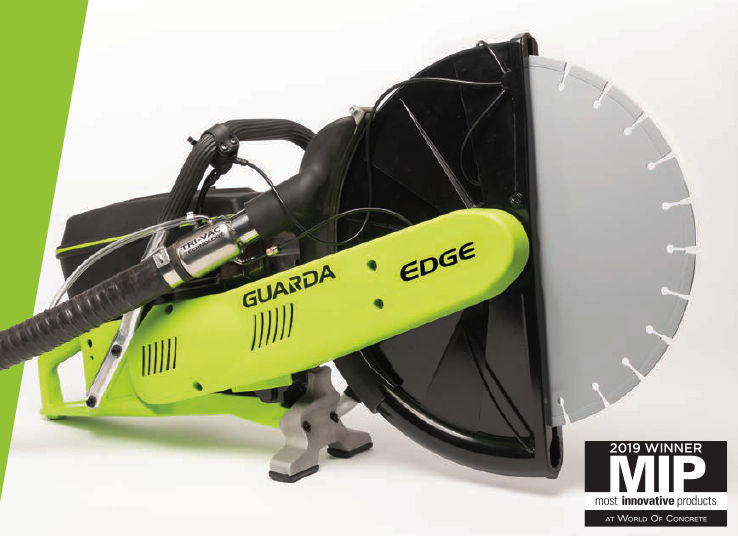

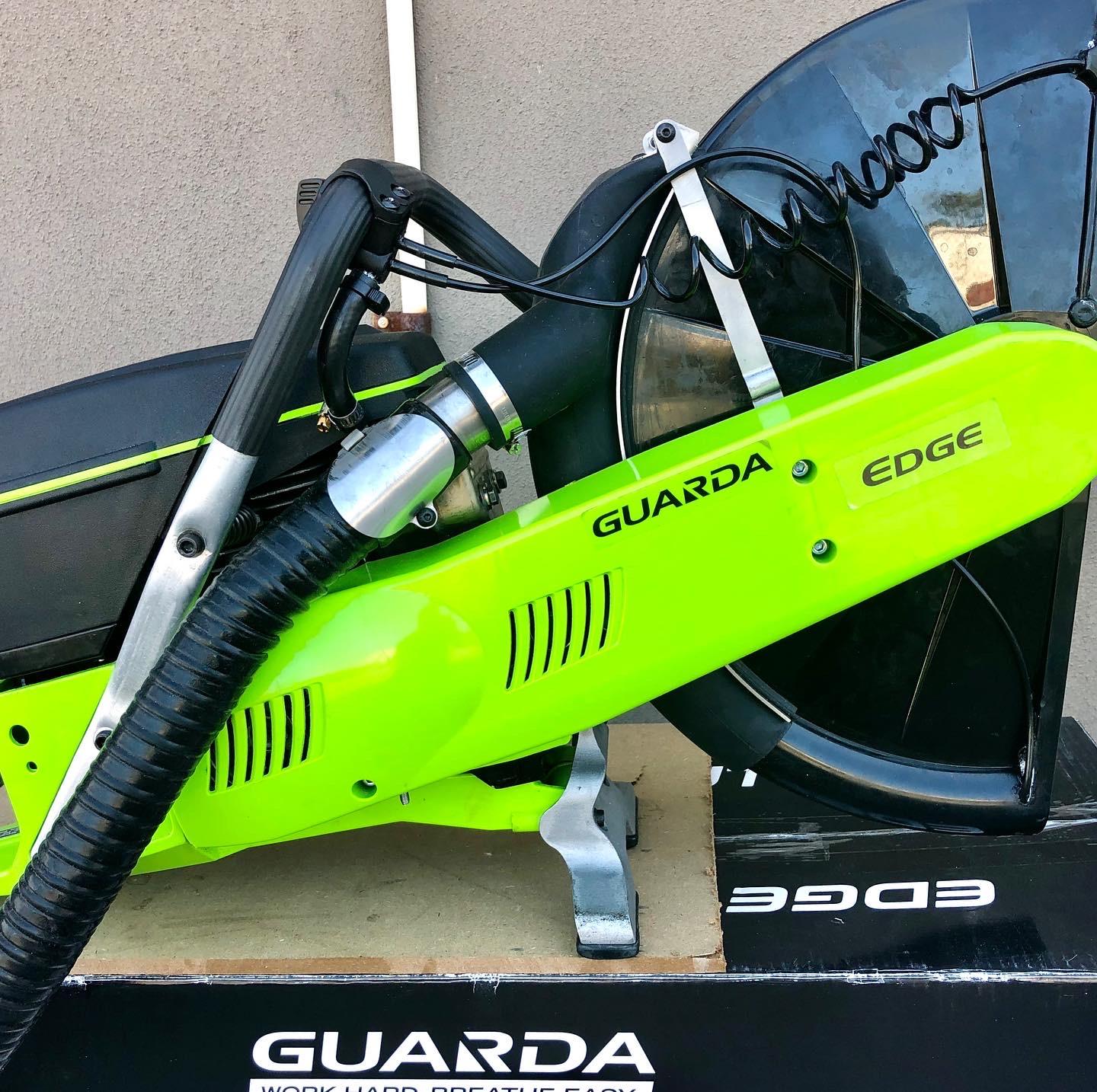

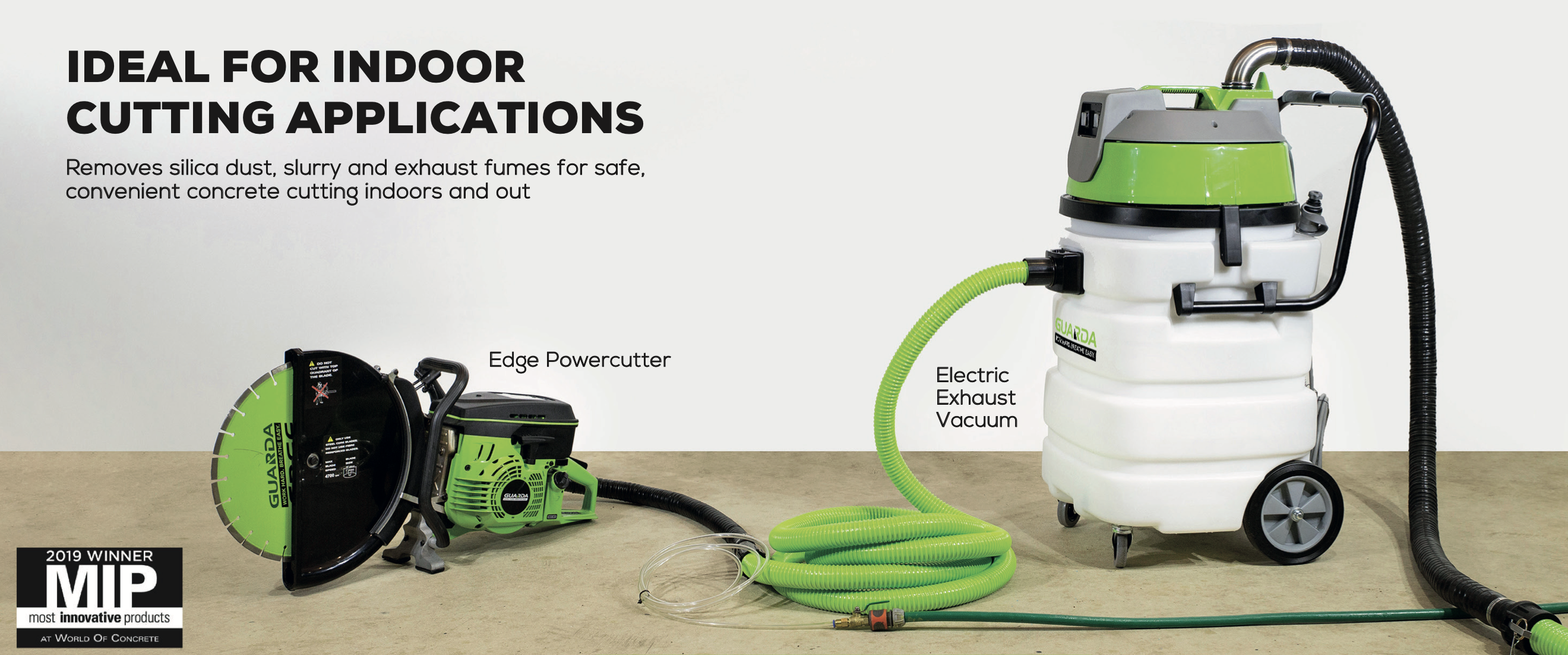

Edge Saw with Tri-Vac Technology:
1. Silica dust control via a combination of water delivered
to the blade guard and vacuum suction
2. Helps move harmful fumes such as Carbon Monoxide
away from the operator via vacuum suction and a
hose attachment to the muffler
3. Slurry control via vacuum suction to the blade guard.
• Fumes, dust and slurry are moved down the same hose
and away from the cutting operations
• No electricity & water at the saw
• Quick and easy to set up
• Suitable for general purpose concrete cutting


Specifications:
Cylinder Volume (cm3/cu.in) - 93.6/5.7
Fuel Capacity (Litre/US Pint) - 1.0/2.1
Carburettor type - Walbro

Note: The slurry collection and dust control is still excellent even when not at full depth, or on curved surfaces, especially if the bottom part of blade guard is against the wall. However, when not cutting full depth, a smaller blade does assist slurry collection.

$2100 incl GST

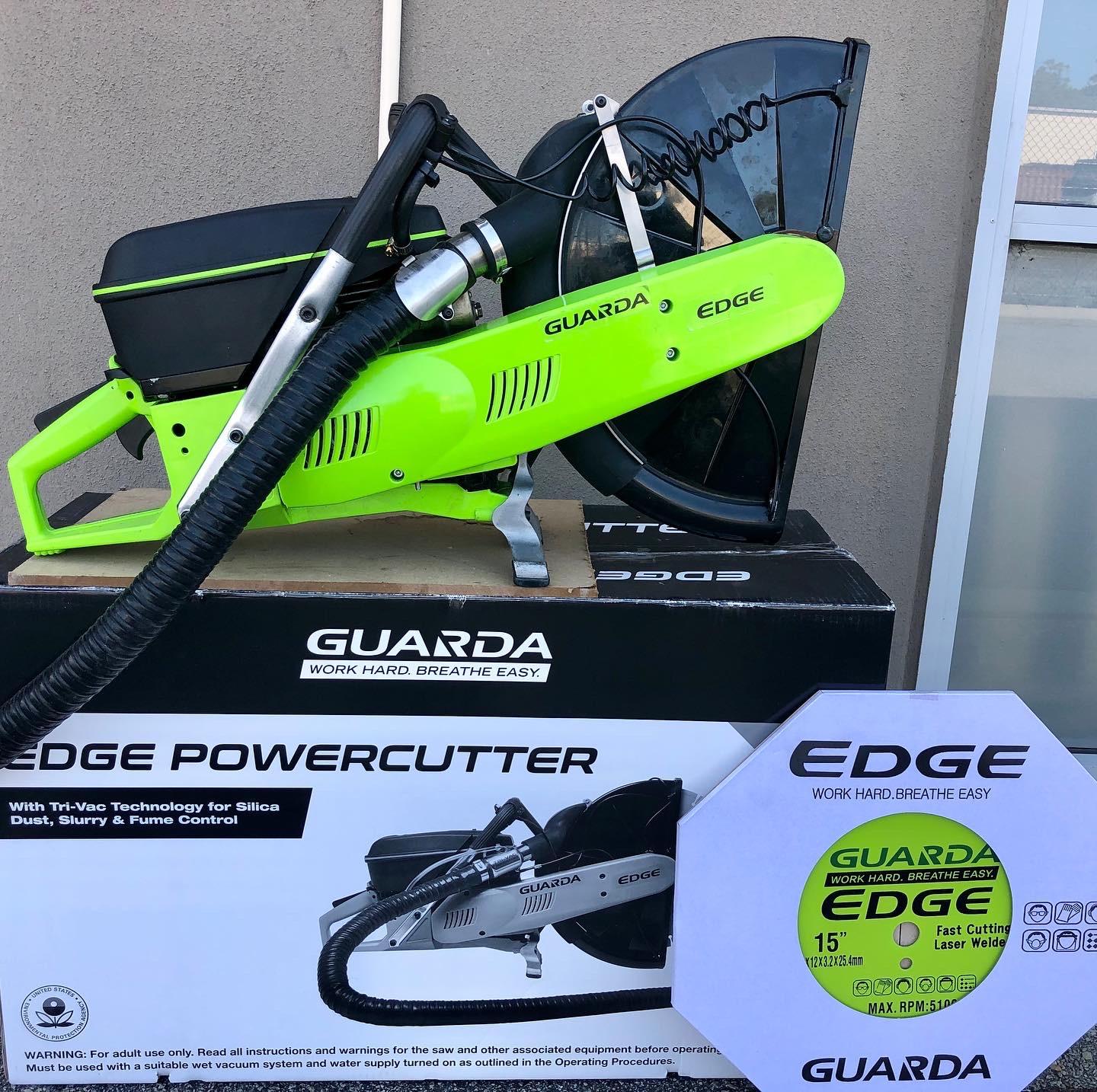

(15"/380mm concrete blade to suit - $250 incl GST)


Download Edge Saw brochure

Download Edge Saw Operation manual

Download Edge Saw Set Up Options

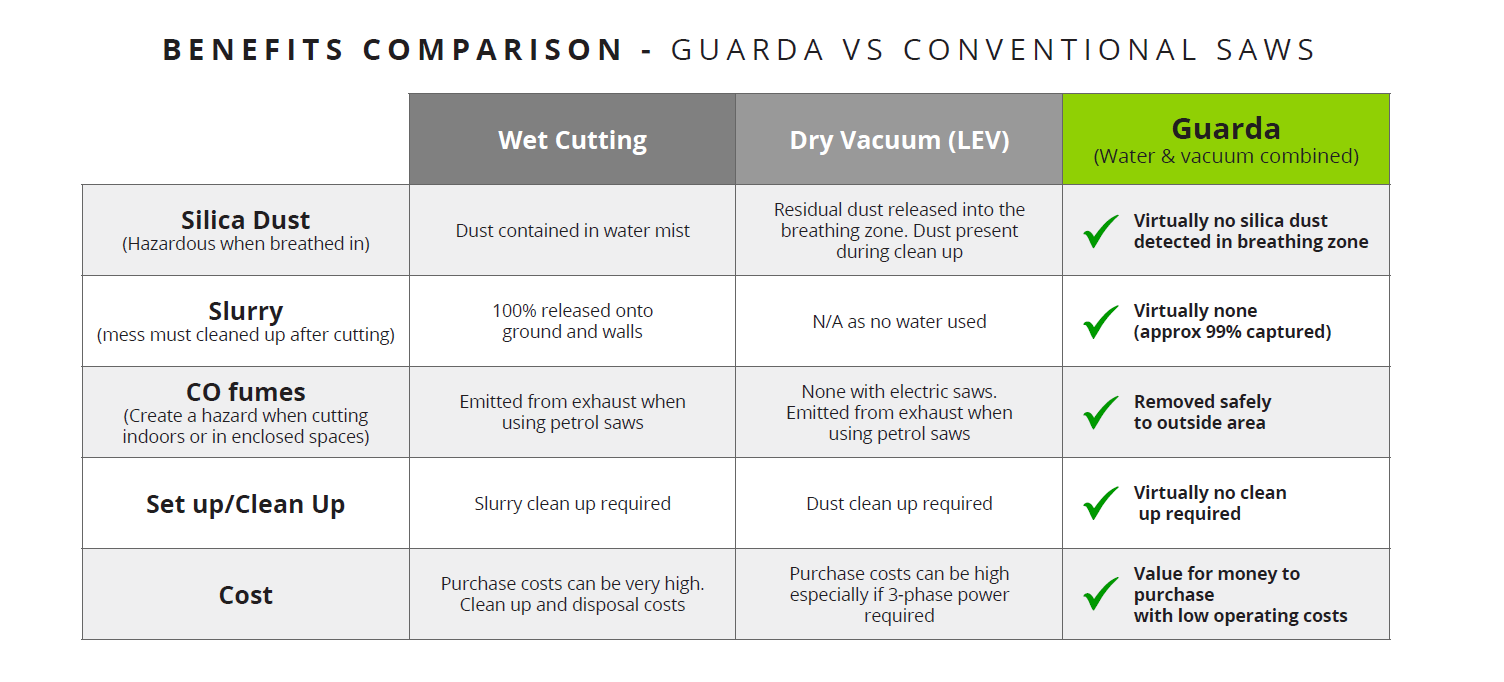

See a comparison of the Guarda cut quick saw in operation, as compared to an ordinary wet saw, and dry cutting here:

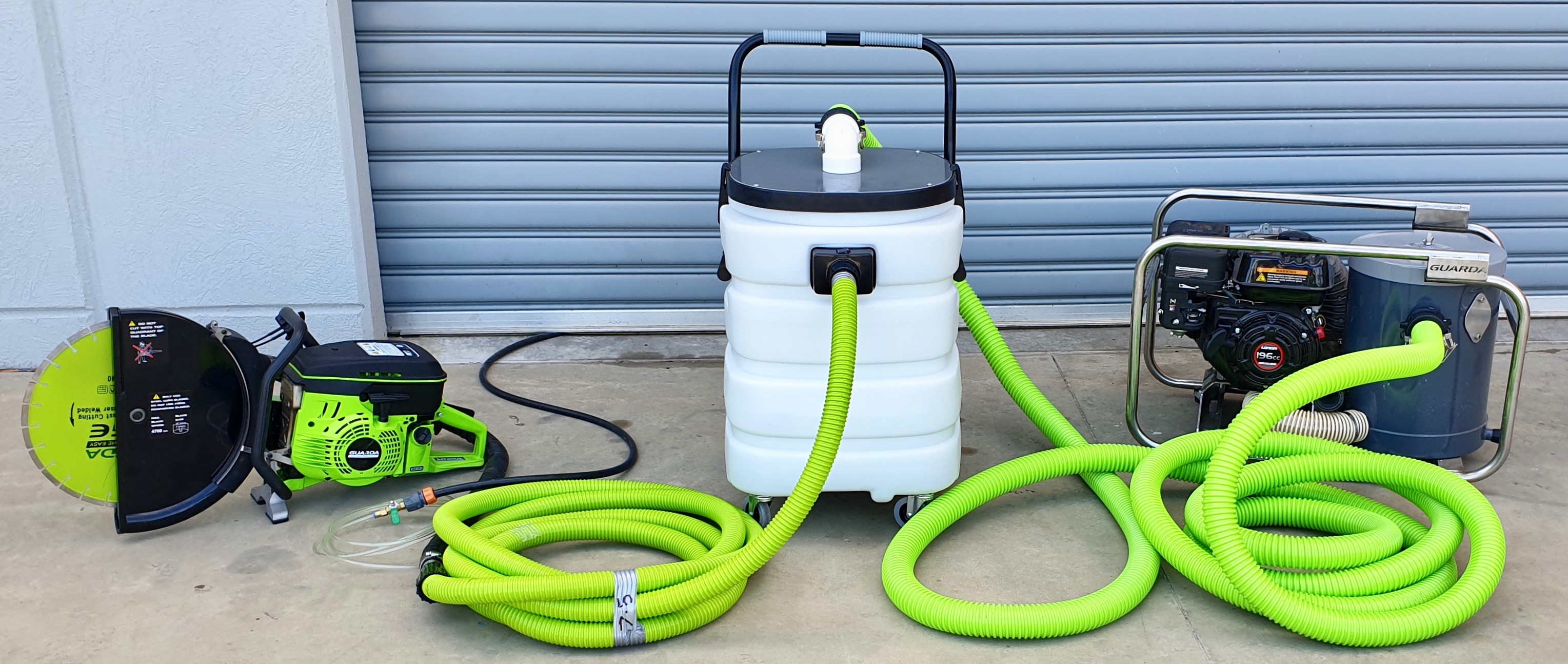

For vacuum hoses over 15m in length, and with no on site power, use Edge saw with Slurry Interceptor and Guarda Vacuum generator

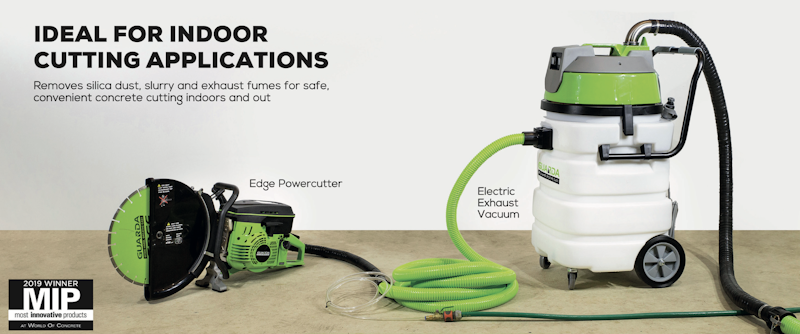

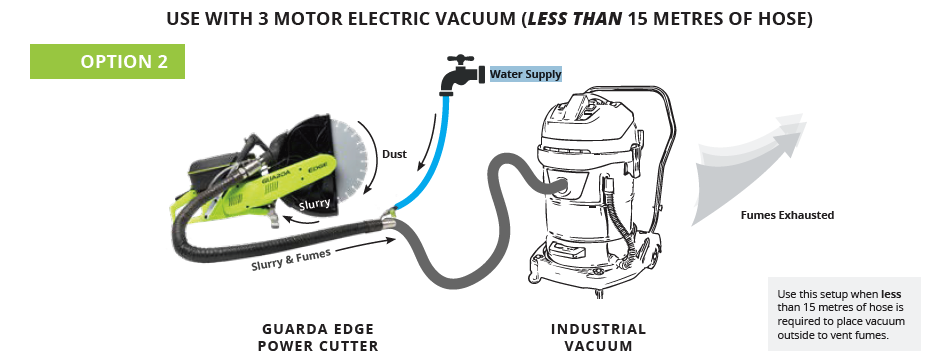

For vacuum hoses under 15m in length, and with on site power, use Edge saw with your wet/dry vacuum

For vacuum hoses over 15m in length, and with on site power, use Edge saw with your wet/dry vacuum and a Slurry Interceptor barrel.

Note:
Vacuum generator or vacuum must always be placed outside.
Vacuum and water must always be on while the saw is operating or else the hose will melt

Slurry Interceptor
Traps the slurry if your vacuum lines back to the vacuum are too long ie over 15M>
Must be connected to a Guarda Vacuum Generator or a wet/dry vacuum of sufficient capacity
$435 incl GST

Wet/dry vacs:
You require a wet/dry vacuum to connect to the saw. Slurry and water will return to the vac at the rate of 1 litre per minute, so your vac needs to be sufficient capacity and power .
2 motor vac (10amp), 90 litre - $695 incl GST
3 motor vac (15 amp), 90 litre - $850 incl GST
See our Shop Vac wet and dry vacuums here

Guarda Vacuum Generator - petrol powered
Can replace 3 separate pieces of equipment – generator, vacuum & water pump
• Quick & easy to set up
• Can remove exhaust fumes, and cutting waste and provides a pressurised water supply (available as an option) all in one tool
• Ideal for use where there is no external power source or pressurised water supply
• Especially suitable for civil works and wet cutting operations in remote locations
• Can be used in conjunction with the Guarda Fume Tube and Guarda Edge Powercutter to remove fumes when cutting indoors or in enclosed spaces (Note: The Guarda Vacuum Generator should always be placed outdoors)
• Can be used with dry cutting operations where a hepa filter is placed in the vacuum line
• Can be used to vacuum slurry where a knockout pot is placed in the vacuum line
• Engine complies with EPIII & CARB I emission standards
• Lightweight and compact
(Note - always must be placed outside)
$2795 incl GST


Download Vac Generator brochure

Note - The Australian designer and importer of Guarda is based in Forrestfield, so all parts, back up and support is locally provided.

Prices correct as of 1/12/19 but subject to change.

Silica dust is very dangerous, especially if dry cutting. For more info on silica, see Safe Work Australia's info here.

For the operation and spare parts manuals for these machines  Click Here

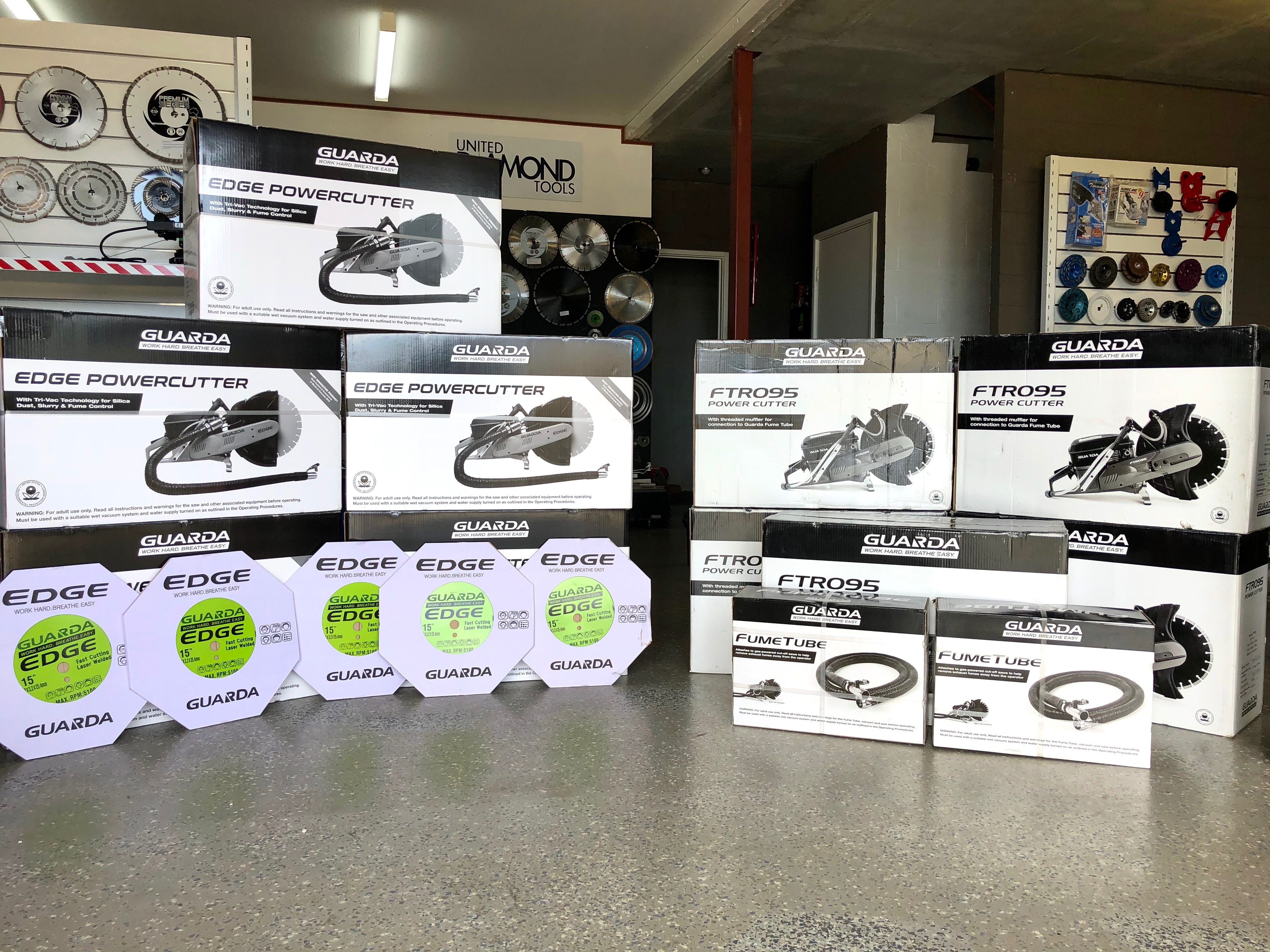

73cf7482-d18d-41d6-b2c3-6ae10224ac08.jpg 67600a46-e968-46c8-8224-a5d90b0fb3b2.jpg edge-saws.jpg
