Electric Saws

We sell, service and repair Husqvarna, Tyrolit and Eibenstock electric saws in Bibra Lake.

Tip:
Some of these saws have very big motors, so draw a lot of power.
Keep extension cords as short as possible.
Use only heavy duty extensions cords
Try to put your vacuum on a seperate circuit, or at least a seperate power point.
This will allow the bigger saws to draw their rated power, and perform as specified.

Here is our range for sale in Perth, Western Australia:

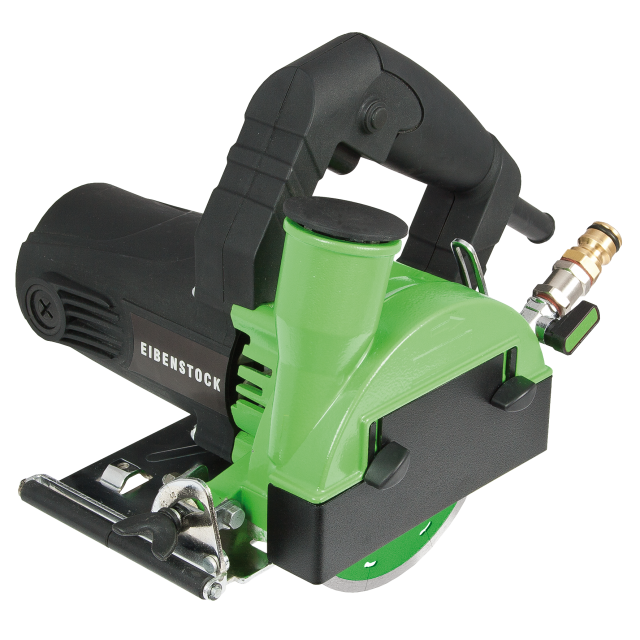

Eibenstock EDS125 - $550 incl GST EX STOCK

The handy diamond saw - 5"/125mm





Use:

  • Wet and dry cutting of different stones, e.g. natural stone, stoneware
  • Cutting of tiles and plates
  • Joint milling
  • Curved cuts (with corresponding diamond blades)
  • Tilers and pavers
  • See the Eibenstock EDS125 in action at the bottom of this page

Features:

  • Mitre adjustment (stepless up to 45°) and cutting depth adjustment (stepless up to 36 mm) without the need for tools
  • Immersion function
  • Roller guided plate - smooth guiding, protects the surface
  • Integrated water supply with flow regulator - easy adjustment of water volume to give dust free working while wet cutting
  • Cutting tables ETT 700 / ETT 1200 - Accessories for precise cutting of tiles and plates - the flexible alternative to unhandy cutting machines
  • Guide rail - optional accessory for precise cuts
  • Vacuum nozzle diameter Ø 35 mm
  • 1250 watts
  • Voltage: 230V
  • No load speed: 12,000RPM
  • Disc Diameter: 125mm
  • Maximum cutting depth: 36mm
  • Spindle: 22.23mm/7/8"
  • Machine Weight 2.9 kg
  • Comes with case, diamond blade, tool & manual.
  • 12 month industrial Australia wide warranty.
  • Guide rail also available: see bottom of page.

The smallest machine in the range, so for lighter duty, on site use. If you have bigger jobs, consider the  more powerful EDS181.

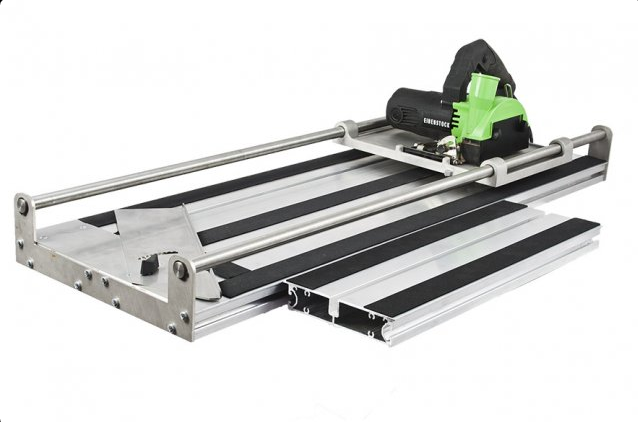

ETT700 and ETT1200 Cutting Table (for EDS125)

  • Wet and dry cutting of different stones, e.g. natural stone, stoneware, ceramics
  • Precisely cutting of tiles and plates up to a thickness of 20 mm
  • For use by Tilers and pavers
  • Use directly on site
  • Drying time of the tile is reduced – can be laid directly
  • Dirty water doesn't have to be recycled
  • ETT700 700mm $TBA incl GST
  • ETT1200 1200mm $TBA incl GST
  • Guide rail also available: see bottom of page.
  • See the German language video of the table in use here

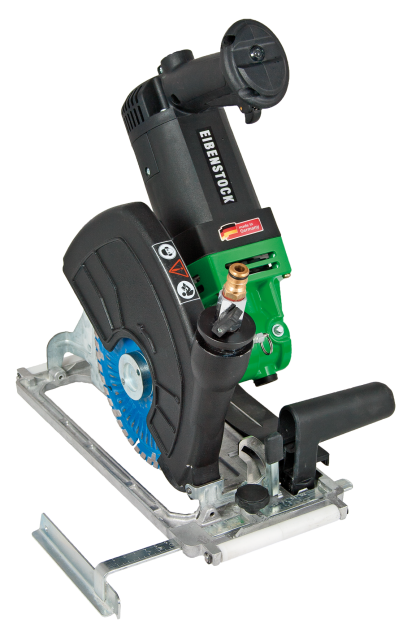

Eibenstock EDS181- $1,375 incl GST

The most powerful in it's class (8"/200mm)








Use:

  • Wet and dry cutting of different stones, e.g. granite, marble, concrete, terrazzo, stoneware
  • Cutting of tiles, window sills, terrace slabs, worktops, facing stones, stones used in gardening and landscaping
  • For cutting out openings in kitchen worktops
  • Joint milling
  • Tilers and pavers, gardening and landscaping, kitchen installer, stonemasonry, floor renovator

Features:

  • Electronic - soft start, temperature and over current cut-off, optical overload indication
  • High-performance gearbox and powerful 2300 W motor - fast working even through the hardest stone
  • ON/OFF switch with lock - no unintentional switching on
  • Mitre adjustment (stepless up to 45°) and cutting depth adjustment (stepless up to 63 mm) without the need for any tools
  • Immersion function and depth limiting - precise cuts, you can begin the cut with the machine in the working area
  • Roller guided plate - smooth guiding, protects the surface
  • Easy change between dry and wet cutting - by means of a direct diameter
  • Vacuum nozzle diameter Ø 35 mm
  • Locking for suction hose - avoids unintentional loosening of the hose during cutting
  • Spindle lock - easy tool change
  • Guide rails - optional accessory for precise cuts
  • 2300 watts
  • Voltage: 230V
  • Rated speed: 4300RPM
  • No load speed: 7500RPM
  • Disc Diameter: 200mm
  • Maximum cutting depth: 63mm (with 200mm blade, 53mm with 180mm blade)
  • Spindle: 22.23mm/7/8"
  • Machine Weight 7.7 kg
  • Comes with case, 180mm diamond blade, angle stop, tools & manual.
  • 12 month industrial Australia wide warranty.
  • Guide rail also available; see bottom of page.

Eibenstock ETR230- $1050 incl GST

The flexible system for dust free dry cutting (9"/230mm)




Use:

  • Cutting of roof tiles, concrete curbs and natural stone
  • Breakthroughs into brickwork
  • Slit of expansion joints
  • Working on concrete stones
  • Cutting of metal
  • Landscaping, civil construction, roofers
  • See the Eibenstock ETR230 in action at the bottom of this page

Features:

  • Powerful but light machine
  • Electronic soft start
  • Lockable cutting depth control in 5mm/15mm/25mm/35mm/45mm/55mm and 65mm - never cut too deep
  • Adjust cutting depth without tools
  • Guard for cutting metal included with machine
  • Vibration damped handle - mountable in different positions
  • Lock-on button with protection against unintentional switching on
  • Cut-off carbon brushes - to protect the motor
  • Vacuum nozzle diameter Ø 35 mm
  • 2600 watts
  • Voltage: 230V
  • No load speed: 6500RPM
  • Disc Diameter: 230mm
  • Maximum cutting depth: 65mm
  • Maximum blade thickness - 10mm
  • Spindle: 22.23mm/7/8"
  • Machine Weight 7.5kg
  • Comes with case, 230mm diamond blade, dust guard, protection guard, tools & manual.
  • 12 month industrial Australia wide warranty.

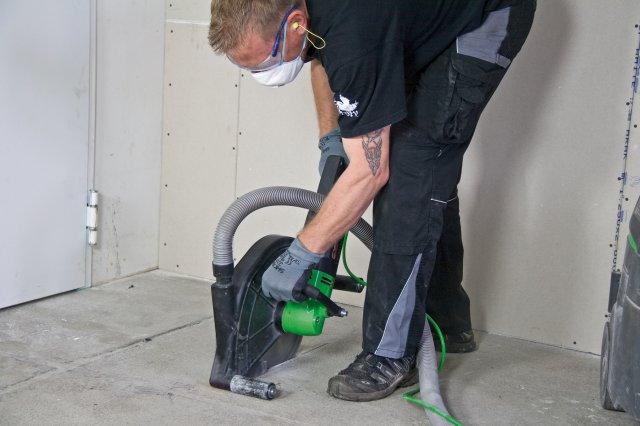

Eibenstock ETR350P - $1995 (incl GST, with blade)

The most powerful wet cutting system, for dust reduced cutting (14"/350mm)




Use:

  • Wet cutting of concrete, brick and natural stone
  • Breakthroughs into brickwork
  • Wall cuttings for installations
  • Slitting of expansion joints
  • Civil engineering, drilling and sawing operators, garden and landscaping trade
  • See the Eibenstock ETR350P in action at the bottom of this page

Features:

  • Special oil bath gearbox with optimal adjusted speed for fast working
  • Immersion function
  • Adjustable cutting depth limitation without any tools e.g. for the cutting of screed (accessory)
  • Adapter for working near to the edge (accessory)
  • Exact wall cuttings by using a guide rail - easy mounting, easy feed, low vibration
  • Wide supporting rolls - exact guiding
  • Spindle lock - easy tool change
  • Robust metal suction hood
  • Handle and hood adjustable - ergonomic handling indifferent working positions
  • Vacuum nozzle diameter Ø 35 mm
  • Electronic - soft start, temperature control and over current cut-off
  • Cut-off carbon brushes - protection of the motor
  • Replacement blades from $265 incl GST
  • 2700 watts/10amp plug
  • Voltage: 230V
  • Rated speed: 2200RPM
  • Disc Diameter: 350mm
  • Maximum cutting depth: 130mm
  • Spindle: 25.4mm/1"
  • Machine Weight 12.5kg
  • Comes with one 350mm diamond blade, dust guard, tools & manual.
  • 12 month industrial Australia wide warranty.

14"/350mm Electric Power Cutter

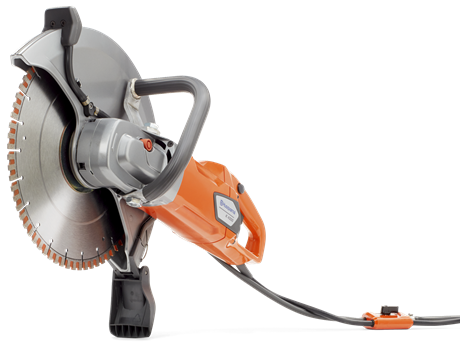

Husqvarna K4000 14"/350mm




This electric all-round cutter minimises the amount of water and slurry. Unlike other electric cutters, the blade rotates forward, cutting into the material efficiently with minimum effort on the operator.

Specifications:

  • Rated Power input 2300 watts
  • Rated current: 10A
  • Weight excl. cable & cutting equipment: 7.6 kg
  • Blade: 350 mm/14"
  • Maximum blade thickness 5.6mm
  • Cutting depth: 125 mm (119mm when vac sled attached)

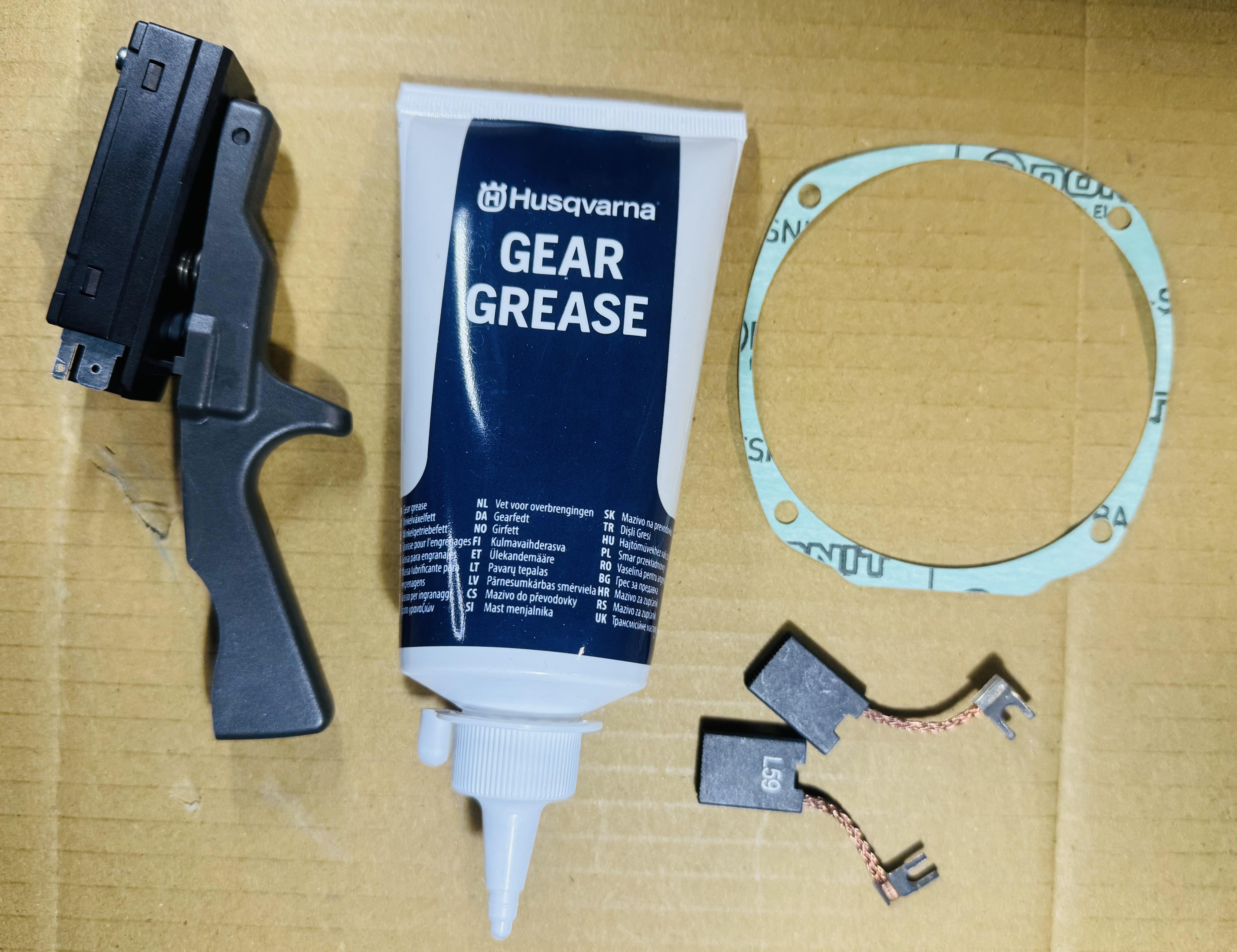

K4000 parts in stock:
On/off switch, brushes, RCD.
Replacement blades from $265 incl GST

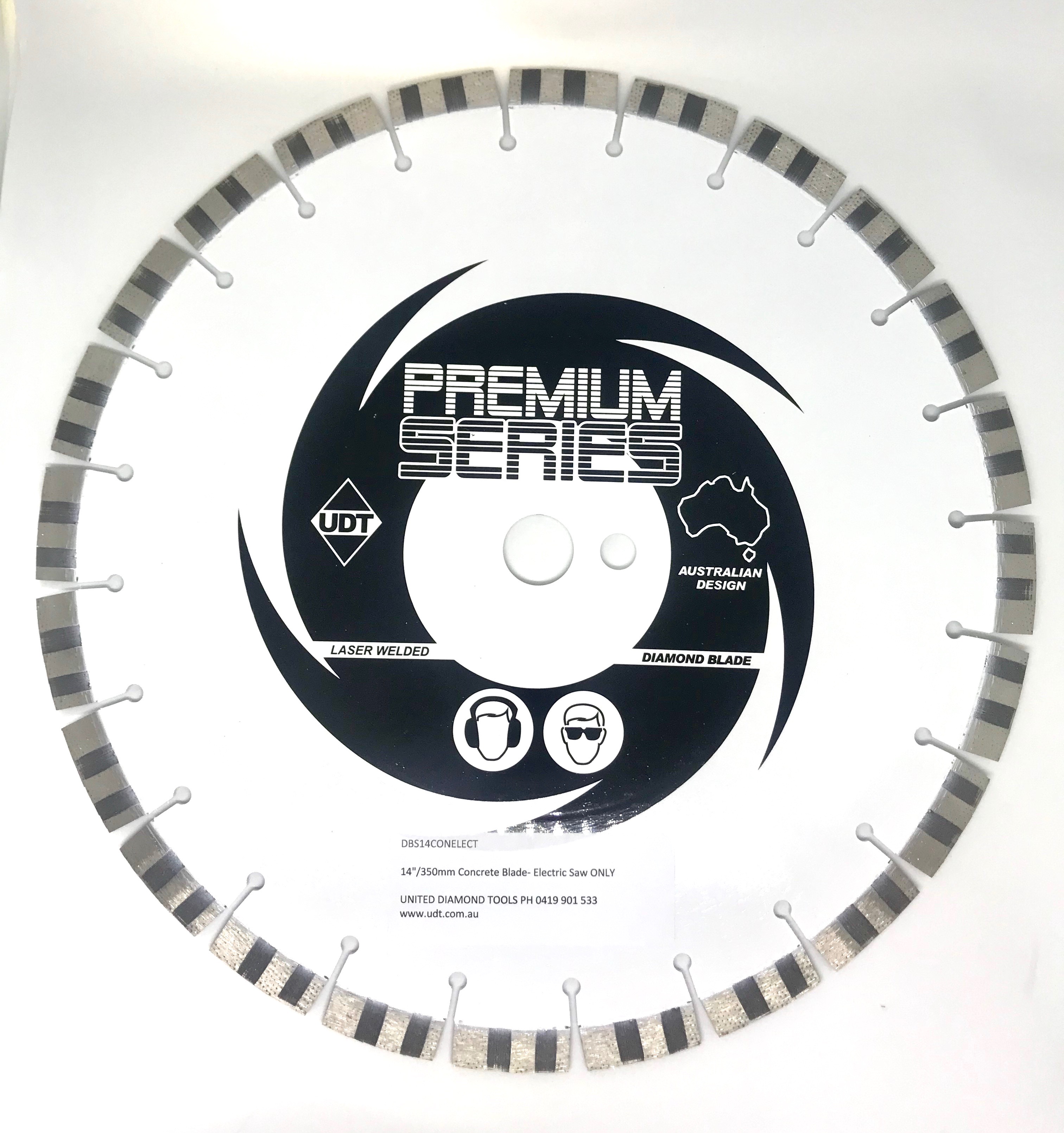

We also specialise in blades to suit the electric saws. As well as offering the recommended Husqvarna blades, we also stock blades specially designed to reduce kick back and biting in the cut, which makes them safer and easier to use.

For Eibenstock Electric Saws Ex Stock

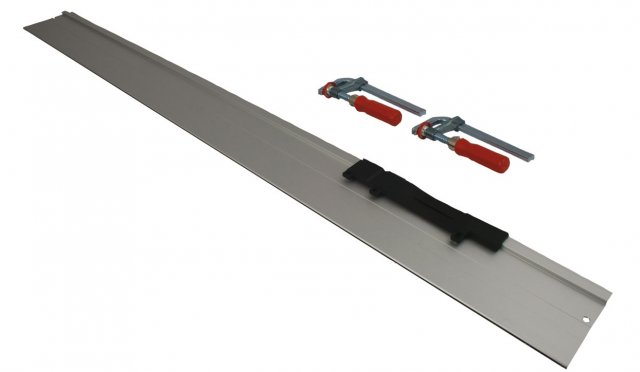

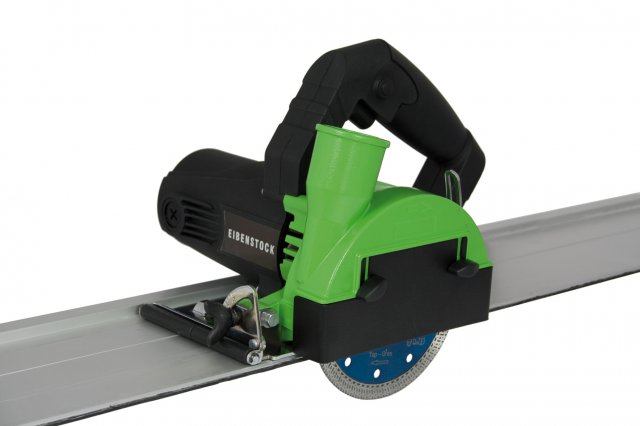

Eibenstock Guide Rail with Clamps



Suits Eibenstock EDS125 and EDS181.

Includes clamp, guide and slider.

Available in 750mm ($195) or 1500mm ($295)

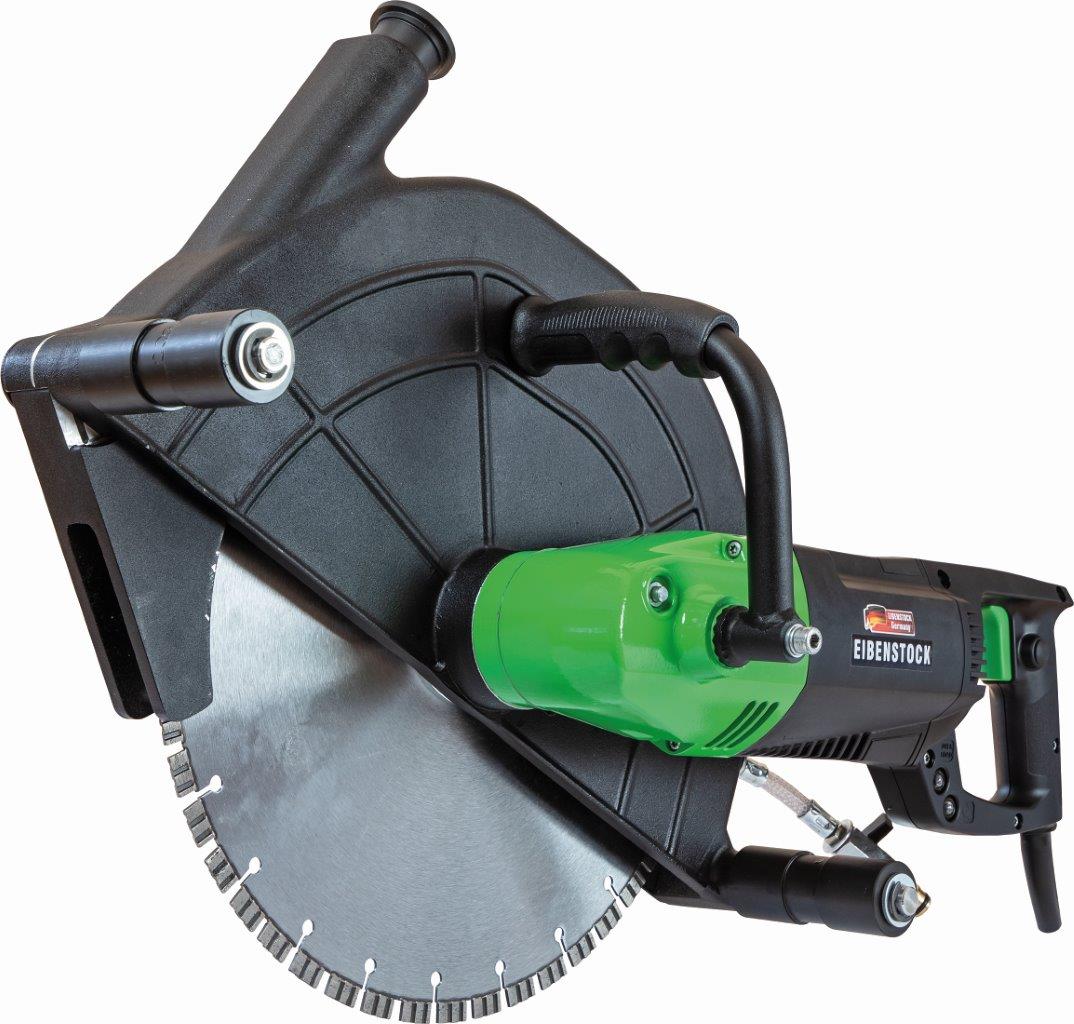

Eibenstock ETR400P

$2450 incl GST (with blade)

The most powerful wet cutting system, for dust reduced cutting (16"/400mm)




Use:

  • Wet cutting of concrete, brick and natural stone
  • Breakthroughs into brickwork
  • Wall cuttings for installations
  • Slitting of expansion joints
  • Civil engineering, drilling and sawing operators, garden and landscaping trade

Features:

  • Oil bath gearbox with optimal adjusted speed for fast working
  • Best results in system with the EE premium diamond cutting disc
  • Immersion function
  • Adjustable cutting depth limitation without any tools f.e. for the cutting of screed (accessory)
  • Adapter for working near to the edge (accessory)
  • Exact wall cuttings by using a guide rail - easy mounting, easy feed, low vibration
  • Wide supporting rolls - exact guiding
  • Spindle lock - easy tool change
  • Robust metal suction hood
  • Handle and hood adjustable - ergonomic handling indifferent working positions
  • Vacuum nozzle diameter Ø 35 mm
  • Electronic - soft start, temperature control and over current cut-off
  • Cut-off carbon brushes - protection of the motor
  • With a 400mm Eibenstock blade included (genuine replacement blade $395 incl)
  • 2850 watts/15amp plug (15A to 10A Safety adaptor - connect 15amp plug to 10amp plug safely and legally - $70 Incl GST)
  • Voltage: 230V
  • Rated speed: 2200RPM
  • Disc Diameter: 400mm
  • Maximum cutting depth: 152mm
  • Spindle: 25.4mm/1"
  • Machine Weight 13.4kg
  • Comes with one 400mm diamond blade, dust guard, tools & manual.
  • 12 month industrial Australia wide warranty.
  • Replacement electric specific blades from $350 Incl GST.

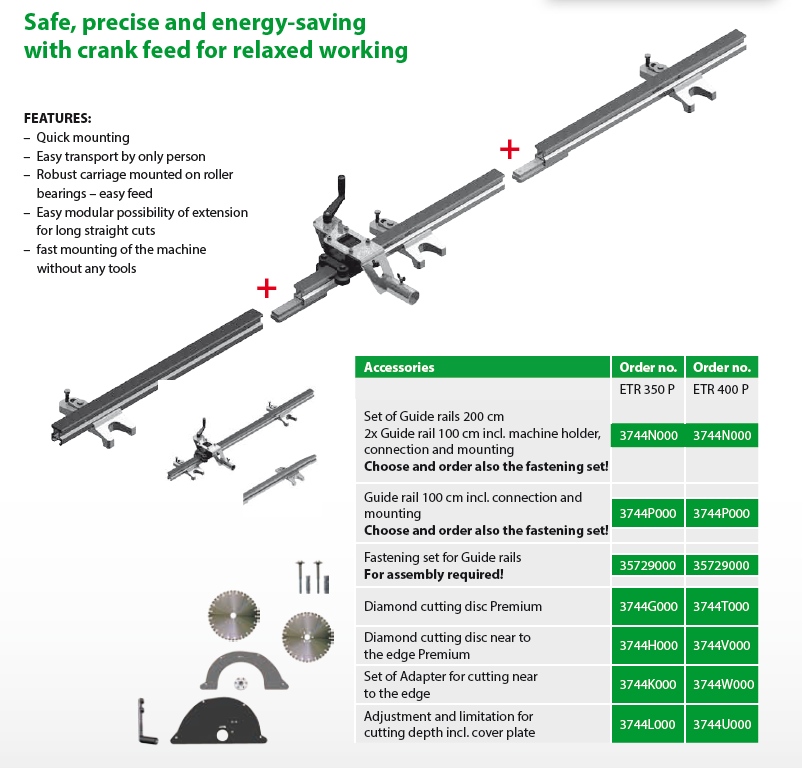

Rail System to suit ETR350 and ETR400: rail-system.png

Tyrolit HBE400***

$1950 incl GST (plus blade)

Tyrolit 405mm Handsaw with Flush cut Flange





Features:
  • Cutting Depths up to 150mm
  • Flushcut Flange option
  • Single phase 230V, 15amp electric handheld saw.
  • Lightweight and compact
  • Detachable guide rollers
  • Flexible use (indoor or outdoor)
  • Integrated dust extraction connection enables clean working
  • Can be used for flush cutting when below blade purchased
  • Wet and dry cutting
  • 415mm blade to suit $330 ea incl GST

Specifications:

  • 3.2kW
  • Voltage: 230V
  • Disc Diameter: 415mm
  • Maximum cutting depth: 150mm
  • Spindle: 25.4mm/1"
  • Machine Weight 9.1kg
  • Use minimal water as saw is not waterproof  (If slurry is found in armature, this voids warranty)
  • 12 month industrial Australia wide warranty

Also suggested:
15A to 10A Safety adaptor - connect 15amp plug to 10amp plug safely and legally:
 - 240V, 10A earth leakage and overcurrent protection.
 - 1.5m cord
 - Weather resistant cord clamp
 - IP54 rated (protected against dust ingress)
 - Plug in the power adaptor near the power source, NOT near the machine.
 - 15 amp machinery must be used with 15 amp extensions cord.
 $75 incl GST

Prices correct as of 1/12/23 but subject to change.

See the Eibenstock EDS125 in action here:

See the Eibenstock ETR 230 in action here:

See the Eibenstock ETR350P in action here:

  For the operation and spare parts manuals for these machines  Click Here

Silica dust - when workers cut, crush, drill, polish, saw or grind products that contain silica, particles are created, which are one-hundredth of the size of a grain of sand. These can get  stuck deep in the lungs.
Ensure precautions to limit exposure to dust are in place.
See the WA government's info on silica dust here.

Tips:
The bigger electric saws (350mm and 400mm) draw a lot of power, but still do not have the same power as a petrol saw.
To maximise their efficiency, we suggest the following:
Use electric saw specific blades - these are softer than standard blades. This enables them to cut better. A petrol saw blade is too hard, and can overload your electric saw.
Leads - use 4mm HD extension leads. Even the 2.5mm HD leads can cause problems. Keep them as short as possible (under 20m).
Step cutting - try to cut about 20mm deep only at a time. This is much better than cutting to full depth. Cutting 20mm keeps the motor spinning at full revs, so the fan is maximising its cooling.
RCD and electric motors are usually IP55 rated,  so
protected against dust ingress, and water resistant (but not water proof!).
Generators - do not run off generators. They may not be 240 volt, 50Hz, or are often too small for the saw.
Vacuums: Put vacuums on a seperate circuit so as not to overload each circuit.
